6AV78634MA202AA0

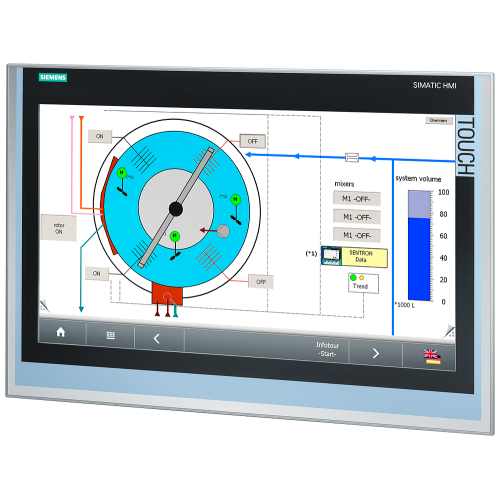

SIMATIC Flat Panel 22" MT ETH

Manufacturer's No: 6AV7863-4MA20-2AA0     Manufacturer: Siemens
SIMATIC Flat Panel 22" MT ETH

Availability On Request

POA
  • 22" multi-touch display with 1920x1080 pixels resolution
  • Ethernet connectivity
  • Built-in unit for 24 V DC
  • DisplayPort and Ethernet monitor
  • USB port on the rear side

Accessories

Follow-up article



Product

Manufacturer Material ID -
6AV7863-4MA20-2AA0
Net Weight -
9.06kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43211900

Technical Specification

Type of display -
TFT
Degree of protection (IP), front side -
IP65
Front built-in possible -
Height of the front -
331 Millimetre
Mouse-cursor control integrated -
Number of colours of the display -
16777216
Number of function buttons -
0
Number of pixels, horizontal -
1920
Number of pixels, vertical -
1080
Operating temperature -
0 Degrees celsius
Recess depth -
63.4 Millimetre
Screen diagonal -
21.5 inch
Supply voltage DC -
19.2 Volt
Voltage type of supply voltage -
DC
Width of the front -
529 Millimetre
With colour display -
With HW-interface digital video signal -
With HW-interface USB -
With touch screen -

Availability On Request

POA
