6ES73271BH000AB0

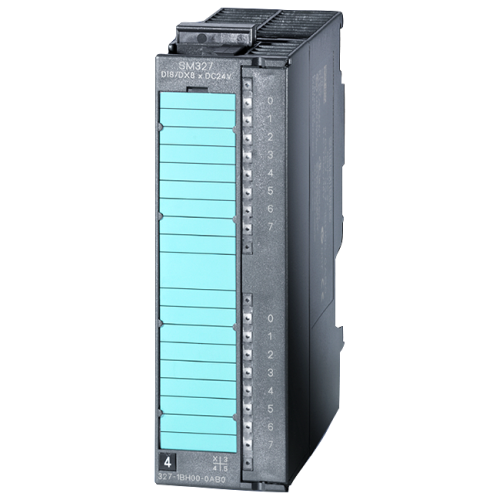

SIMATIC S7-300, Digital module SM 327, isolated, 8DI and 8DX, 24 V DC, 0.5 A 1x 20-pole; 8DX by indi

Manufacturer's No: 6ES7327-1BH00-0AB0     Manufacturer: Siemens
SIMATIC S7-300, Digital module SM 327, isolated, 8DI and 8DX, 24 V DC, 0.5 A 1x 20-pole; 8DX by indi

Availability On Request

POA
  • SIMATIC S7-300 Digital module SM 327
  • Isolated module with 8 digital inputs (DI) and 8 digital outputs (DX)
  • Operating voltage: 24 V DC, current: 0.5 A
  • 1x 20-pole connector
  • Each of the 8 digital outputs can be parameterized as either a digital input (DI) or digital output (DO)

Accessories



Product

Manufacturer Material ID -
6ES7327-1BH00-0AB0
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
UNSPSC -
32151705

Technical Specification

Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
1.2 Millisecond
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Depth -
120 Millimetre
Digital inputs configurable -
Digital outputs configurable -
Explosion safety category for dust -
None
Height -
125 Millimetre
Input current at signal 1 -
6 Milliampere
Number of digital inputs -
8
Number of digital outputs -
8
Output current -
0.5 Ampere
Permitted voltage at input -
-30 Volt
Permitted voltage at output -
0 Volt
Redundancy -
Short-circuit protection, outputs available -
Supply voltage DC -
20.4 Volt
Time delay at signal change -
1.2 Millisecond
Type of digital output -
Transistor
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
40 Millimetre

Availability On Request

POA
