6SL33101PG345AA0

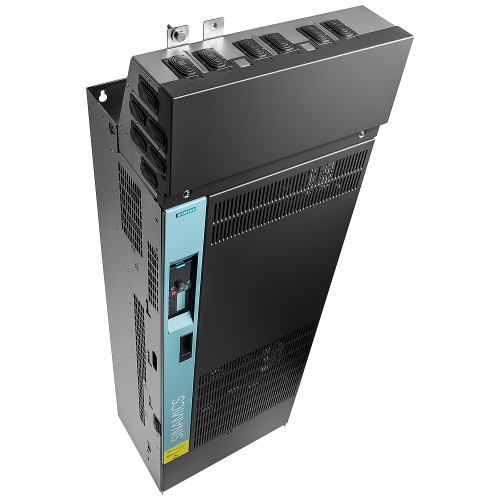

SINAMICS G120P Power Module IP20 500-690V 3AC, 50/60 Hz, 453A Rated power: 400kW 6-pulse supply with

Manufacturer's No: 6SL3310-1PG34-5AA0     Manufacturer: Siemens
SINAMICS G120P Power Module IP20 500-690V 3AC, 50/60 Hz, 453A Rated power: 400kW 6-pulse supply with

Availability On Request

£29,543.21
  • Power Module for SINAMICS G120P
  • Input Voltage: 500-690V AC, 3-phase, 50/60 Hz
  • Max Current: 453A
  • Rated Power: 400kW
  • 6-pulse supply configuration
  • IP20 protection rating
  • Version without Control Unit

Accessories



Product

Manufacturer Material ID -
6SL3310-1PG34-5AA0
Net Weight -
183.00kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
32121704

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Depth -
393 Millimetre
Height -
1696 Millimetre
Mains voltage -
500 Volt
Max. output at linear load at rated output voltage -
355 Kilowatt
Max. output at quadratic load at rated output voltage -
400 Kilowatt
Max. output frequency -
100 Hertz
Nominal output current I2N -
430 Ampere
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
10 Percentage
Type of converter -
U converter
Width -
548 Millimetre

Availability On Request

£29,543.21
