7KM42111BB003AA0

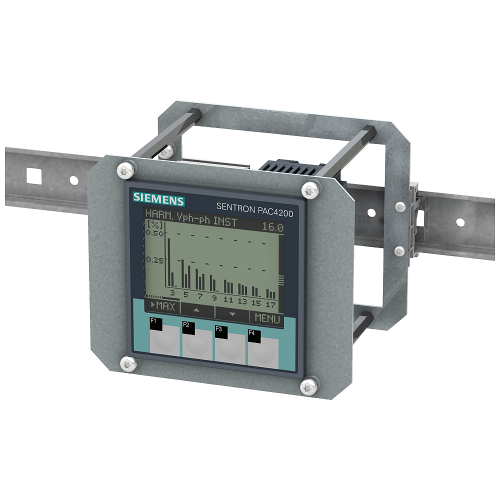

SENTRON 7KM PAC4200 power monitoring device, front mounting, 500/289 V, 5 A, 22-65 V DC, Modbus TCP, incl. DIN-rail adapter

Manufacturer's No: 7KM4211-1BB00-3AA0     Manufacturer: Siemens
SENTRON 7KM PAC4200 power monitoring device, front mounting, 500/289 V, 5 A, 22-65 V DC, Modbus TCP, incl. DIN-rail adapter

Availability On Request

POA
  • Measuring device model: SENTRON 7KM PAC4200
  • Voltage: Line-Line: 500 V, Line-Neutral: 289 V
  • Current: 5 A, 3-phase
  • Communication: Modbus TCP, optional Modbus RTU / PROFINET / PROFIBUS / DI/DO
  • Measurements: Apparent/Active/Reactive energy, Power factor (cos phi), Harmonics: 3rd - 31st, THD
  • Accuracy: Class 0.2 according to IEC61557-12 or Class 0.2S according to IEC62053-22
  • Power supply: External low voltage power supply unit DC
  • Mounting: Standard mounting rail adapter
  • Interface: Screw terminals
Presentation video
Presentation video


Product

Manufacturer Material ID -
7KM4211-1BB00-3AA0
Net Weight -
0.75kg

Additional Product Information

Commodity Code -
90303100
Country of Origin -
HU
RoHs Compliance -
Yes
UNSPSC -
41113637

Technical Specification

Ampere meter -
Blind power meter -
Depth -
82 Millimetre
Effective power measurement device -
Ethernet-connections -
0
Frequency meter -
Height -
96 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of current measurement inputs -
3
Number of digital inputs -
2
Number of digital outputs -
2
Number of voltage measurement inputs -
3
Pulse counter -
Supply voltage AC 50 Hz -
289 Volt
Supply voltage AC 60 Hz -
500 Volt
Supply voltage DC -
22 Volt
Supporting protocol for MODBUS -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Voltmeter -
Width -
96 Millimetre
With audit logging (audit log) -
With firmware signature -

Availability On Request

POA
