8GK20433KM21

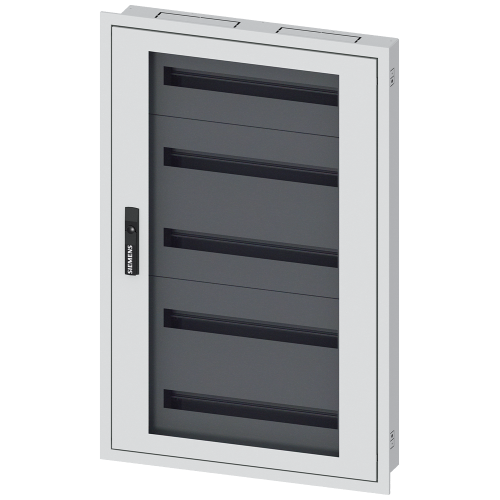

ALPHA 125 UNIVERSAL, wall-mounted cabinet, Flush-mounting, with distribution board panel, IP31, Prot

Manufacturer's No: 8GK2043-3KM21     Manufacturer: Siemens
ALPHA 125 UNIVERSAL, wall-mounted cabinet, Flush-mounting, with distribution board panel, IP31, Prot

Availability On Request

£840.54
  • Wall-mounted cabinet for universal use
  • Flush-mounting design
  • Dimensions: H 1000 mm x W 600 mm x T 140 mm
  • IP31 protection rating
  • Protection class 1
  • RAL 7035 color
  • Equipped with a door featuring an inspection window
Product video
Product video


Product

Manufacturer Material ID -
8GK2043-3KM21
Net Weight -
32.00kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
32151703

Technical Specification

Colour -
Grey
Degree of protection (IP rating) -
IP31
Depth -
140 Millimetre
Extension possible -
Height -
1000 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK09
Nominal current (In) -
125 Ampere
Number of openings for flange plates -
2
Number of rows -
5
RAL number -
7035
Recess depth -
140 Millimetre
Suitable for lightning protection -
Surface protection -
Powder coated
Transparent cover/door -
Width -
600 Millimetre
Width in number of modular spacings -
120
