8GK20420KM21

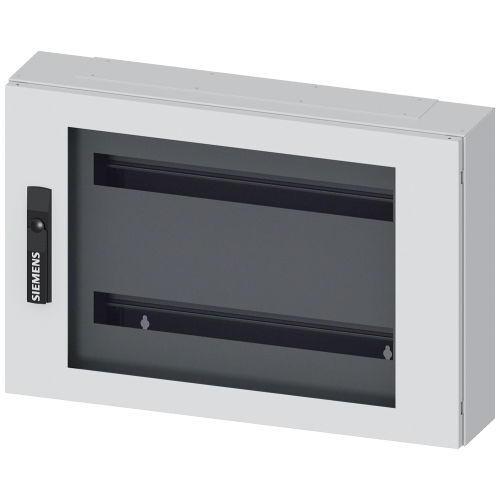

ALPHA 125 UNIVERSAL, wall-mounted cabinet, Surface mounting, with distribution board panel, IP43, Protection class 1, H: 400 mm, W

Manufacturer's No: 8GK2042-0KM21     Manufacturer: Siemens
ALPHA 125 UNIVERSAL, wall-mounted cabinet, Surface mounting, with distribution board panel, IP43, Protection class 1, H: 400 mm, W: 600 mm, T: 140 mm, RAL 7035, with door with inspection window

Availability On Request

£553.05
  • Wall-mounted cabinet for universal use
  • Surface mounting
  • IP43 protection rating

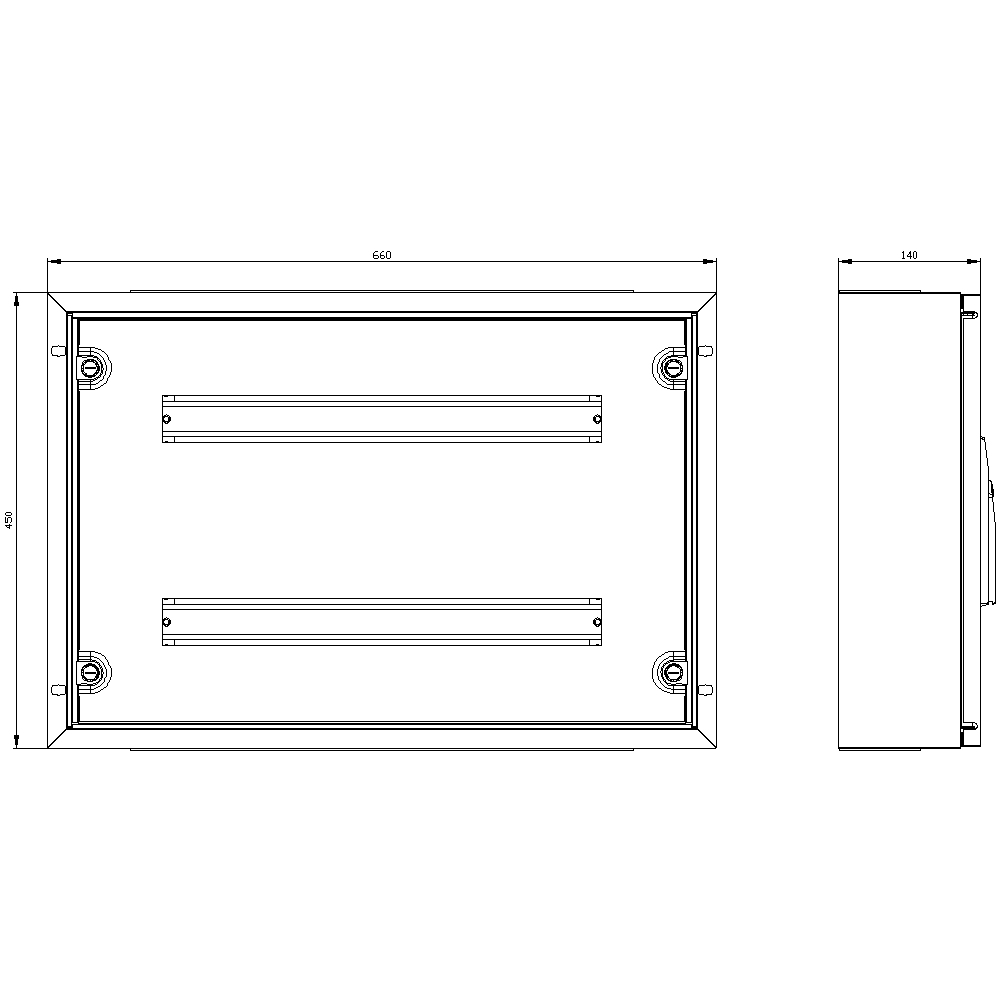

  • Height: 400 mm, Width: 600 mm, Depth: 140 mm
  • Protection class 1
  • RAL 7035 color
  • Equipped with a door featuring an inspection window
Product video


Product

Manufacturer Material ID -
8GK2042-0KM21
Net Weight -
13.05kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
31261502

Technical Specification

Colour -
Grey
Degree of protection (IP rating) -
IP43
Depth -
140 Millimetre
Extension possible -
Height -
400 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK09
Nominal current (In) -
125 Ampere
Number of openings for flange plates -
2
Number of rows -
2
RAL number -
7035
Recess depth -
140 Millimetre
Suitable for lightning protection -
Surface protection -
Powder coated
Transparent cover/door -
Width -
600 Millimetre
Width in number of modular spacings -
48

Availability On Request

£553.05
