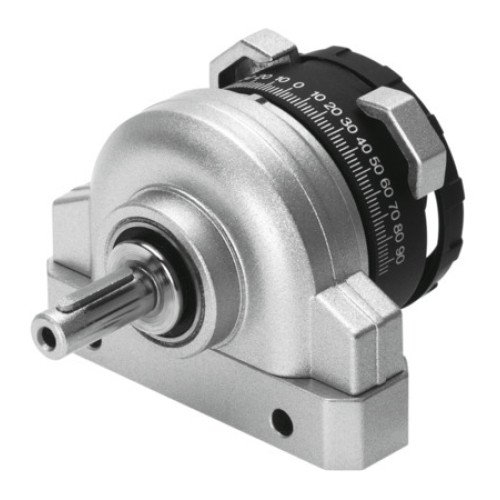

DSR-10-180-P Semi-rotary drive

Manufacturer's No: DSR-10-180-P     Manufacturer: Festo
DSR-10-180-P Semi-rotary drive

Availability On Request

£324.84
  • Type: Semi-rotary drive
  • Design: Vane principle
  • Swivel Angle: Infinitely adjustable from 0 to 180 degrees
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Size: 10
  • Cushioning Angle: 2.4 degrees
  • Rotation Angle Adjustment Range: 0 to 180 degrees
  • Operating Pressure: 2.5 to 8 BAR
  • Max. Swivel Frequency: 3 Hz at 0.6 MPa
  • Operating Medium: Compressed air (ISO 8573-1:2010)

Read more

  • Temperature Range: -10°C to 60°C
  • Theoretical Torque: 0.5 Nm at 0.6 MPa
  • Product Weight: 100 g
  • Mounting: With through-hole
  • Pneumatic Connection: M3
  • Material: Drive shaft - Steel, Nickel-plated; Seals - NBR
  • Mode of Operation: Double-acting
  • Position Detection: Without
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Symbol: 991265


Product

Manufacturer Material ID -
DSR-10-180-P
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
