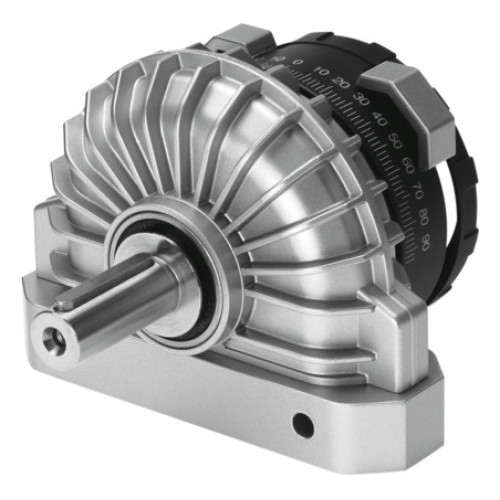

DSR-40-180-P Semi-rotary drive

Manufacturer's No: DSR-40-180-P     Manufacturer: Festo
DSR-40-180-P Semi-rotary drive

Availability On Request

£625.97
  • Type: Semi-rotary drive
  • Principle: Rotary vane
  • Swivel Angle: Infinitely adjustable from 0 to 180 degrees
  • Stop System: Separate from rotary vane for force absorption
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Size: 40
  • Cushioning Angle: 0.9 degrees
  • Rotation Angle Adjustment Range: 0 to 180 degrees
  • Operating Pressure: 1.5 to 8 BAR
  • Max. Swivel Frequency: 3 Hz at 0.6 MPa

Read more

  • Operating Medium: Compressed air (ISO 8573-1:2010)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: -10 to 60 degrees Celsius
  • Theoretical Torque: 20 Nm at 0.6 MPa
  • Product Weight: 2400 g
  • Mounting: With through-hole
  • Pneumatic Connection: G1/4
  • Material: Drive shaft - Steel, Nickel-plated; Seals - NBR


Product

Manufacturer Material ID -
DSR-40-180-P
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£625.97
