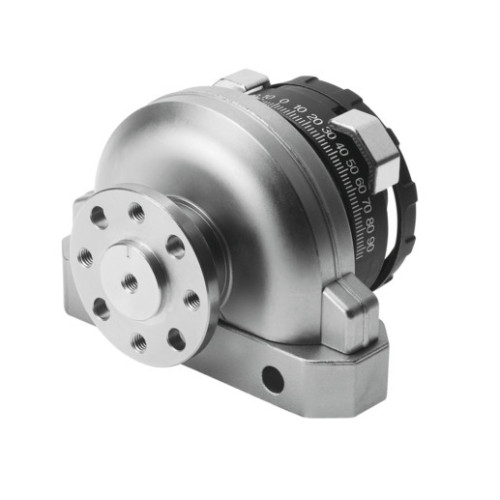

DSRL-12-180-P-FW Semi-rotary drive

Manufacturer's No: DSRL-12-180-P-FW     Manufacturer: Festo
DSRL-12-180-P-FW Semi-rotary drive

Availability On Request

£352.15
  • Type: Semi-rotary drive DSRL-12-180-P-FW
  • Principle: Rotary vane
  • Swivel Angle: Infinitely adjustable, 0 - 180 degrees
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Size: 12
  • Cushioning Angle: 2.2 degrees
  • Rotation Angle Adjustment Range: 0 - 180 degrees
  • Mounting Position: Optional
  • Mode of Operation: Double-acting
  • Design: Vane

Read more

  • Operating Pressure: 2 to 8 BAR
  • Max. Swivel Frequency: 3 Hz at 0.6 MPa
  • Operating Medium: Compressed air to ISO 8573-1:2010
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: -10 to 60 degrees Celsius
  • Theoretical Torque: 1 Nm at 0.6 MPa
  • Product Weight: 200 g
  • Type of Mounting: With through-hole
  • Pneumatic Connection: M5
  • Material: Drive shaft - Steel, Nickel-plated; Seals - NBR


Product

Manufacturer Material ID -
DSRL-12-180-P-FW
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
