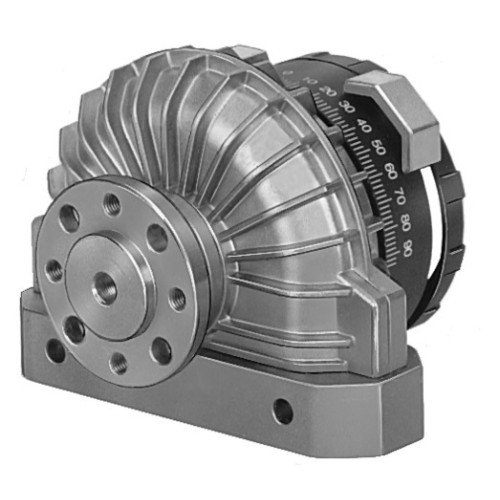

DSRL-40-180-P-FW Semi-rotary drive

Manufacturer's No: DSRL-40-180-P-FW     Manufacturer: Festo
DSRL-40-180-P-FW Semi-rotary drive

Availability On Request

£689.74
  • Type: Semi-rotary drive DSRL-40-180-P-FW
  • Principle: Rotary vane with infinitely adjustable swivel angle
  • Size: 40
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Cushioning Angle: 0.9 degrees
  • Rotation Angle Adjustment Range: 0 - 180 degrees
  • Swivel Angle: 0 - 180 degrees
  • Mode of Operation: Double-acting
  • Design: Vane
  • Operating Pressure: 1.5 to 8 BAR

Read more

  • Max. Swivel Frequency at 0.6 MPa: 3 Hz
  • Operating Medium: Compressed air to ISO 8573-1:2010
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: -10 to 60 degrees Celsius
  • Theoretical Torque at 0.6 MPa: 20 Nm
  • Product Weight: 2400 g
  • Mounting: With through-hole
  • Pneumatic Connection: G1/4
  • Material: Drive shaft - Steel, Nickel-plated; Seals - NBR


Product

Manufacturer Material ID -
DSRL-40-180-P-FW
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
