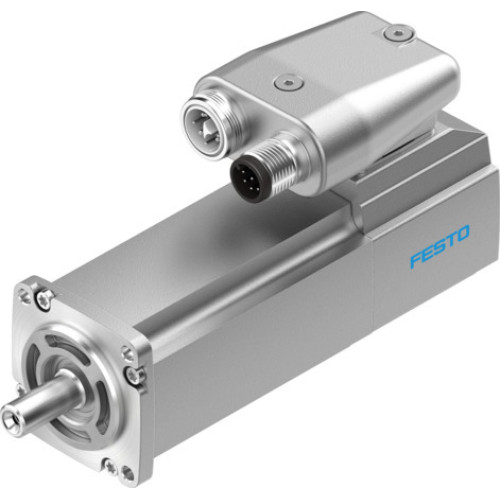

EMME-AS-40-M-LV-AS Servo motor

Manufacturer's No: EMME-AS-40-M-LV-AS     Manufacturer: Festo
EMME-AS-40-M-LV-AS Servo motor

Availability On Request

£878.43
  • Type: Servo motor EMME-AS-40-M-LV-AS
  • Without gearing or brake
  • Ambient temperature: -10 to 40°C
  • Storage temperature: -20 to 70°C
  • Relative air humidity: 0 to 90%
  • Conforms to standard: IEC 60034
  • Insulation protection class: F
  • Degree of protection: IP21
  • Electrical connector system: Plug
  • RoHS-compliant materials

Read more

  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Approvals: RCM trademark, c UL us - Recognized (OL)
  • CE mark: EU EMC Directive, EU Low Voltage Directive, EU RoHS Directive
  • UKCA marking: UK instructions for EMC, UK RoHS instructions, UK regulations for electrical equipment
  • Nominal operating voltage DC: 360V
  • Type of winding switch: Star inside
  • Number of pole pairs: 2
  • Standstill torque: 0.35 Nm
  • Nominal torque: 0.21 Nm
  • Peak torque: 1.4 Nm
  • Nominal rotary speed: 9000 RPM
  • Max. rotational speed: 10000 RPM
  • Nominal power rating: 200W
  • Continuous stall current: 1.6A
  • Nominal motor current: 1.2A
  • Peak current: 6.4A
  • Motor constant: 0.175 Nm/A
  • Voltage constant, phase-to-phase: 13.2 V/Hz
  • Phase-phase winding resistance: 8.6 Ohm
  • Phase-phase winding inductance: 4.51 mH
  • Total mass moment of inertia of output: 0.054 kgm²
  • Product weight: 700g
  • Permissible axial shaft load: 12N
  • Permissible radial shaft load: 115N
  • Rotor position sensor: Absolute single-turn encoder
  • Rotor position encoder interface: HIPERFACE®
  • Rotor position sensor measuring principle: Capacitive
  • Rotor position encoder resolution: 12 BIT
  • Rotor position encoder angular accuracy: 20 arcmin
  • Mean time to dangerous failure (MTTFd) for rotor position sensor: 340 years


Product

Manufacturer Material ID -
EMME-AS-40-M-LV-AS
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85013100
Country of Origin -
DE
UNSPSC -
26101205
Festo

Availability On Request

£878.43
