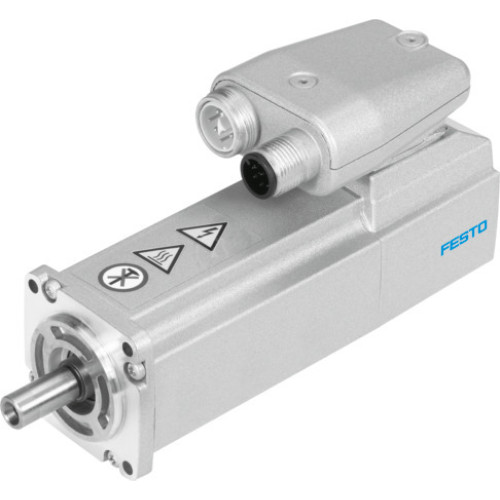

EMME-AS-40-M-LV-ASB Servo motor

Manufacturer's No: EMME-AS-40-M-LV-ASB     Manufacturer: Festo
EMME-AS-40-M-LV-ASB Servo motor

Availability On Request

£1,251.31
  • Model: EMME-AS-40-M-LV-ASB
  • Type: Servo motor without gear unit/with brake
  • Ambient Temperature: -10°C to 40°C
  • Storage Temperature: -20°C to 70°C
  • Relative Air Humidity: 0% to 90%
  • Conforms to Standard: IEC 60034
  • Insulation Protection Class: F
  • Rating Class: S1
  • Degree of Protection: IP21
  • Electrical Connector System: Plug

Read more

  • RoHS-compliant materials
  • Corrosion Resistance Class: CRC 0 (No corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364 Zone III
  • Approvals: RCM trademark, c UL us - Recognized (OL)
  • CE Mark: EU EMC Directive, EU Low Voltage Directive, EU RoHS Directive
  • UKCA Marking: UK instructions for EMC, UK RoHS instructions, UK regulations for electrical equipment
  • Nominal Operating Voltage DC: 360V
  • Type of Winding Switch: Star inside
  • Number of Pole Pairs: 2
  • Standstill Torque: 0.35 Nm
  • Nominal Torque: 0.21 Nm
  • Peak Torque: 1.4 Nm
  • Nominal Rotary Speed: 9000 RPM
  • Max. Rotational Speed: 10000 RPM
  • Nominal Power Rating: 200W
  • Continuous Stall Current: 1.6A
  • Nominal Motor Current: 1.2A
  • Peak Current: 6.4A
  • Motor Constant: 0.175 Nm/A
  • Voltage Constant, Phase-to-Phase: 13.2 V/Hz
  • Phase-Phase Winding Resistance: 8.6 Ohm
  • Phase-Phase Winding Inductance: 4.51 mH
  • Total Mass Moment of Inertia of Output: 0.079 kgm²
  • Product Weight: 850g
  • Permissible Axial Shaft Load: 12N
  • Permissible Radial Shaft Load: 115N
  • Rotor Position Sensor: Absolute single-turn encoder
  • Rotor Position Encoder Interface: HIPERFACE®
  • Rotor Position Sensor Measuring Principle: Capacitive
  • Rotor Position Encoder Resolution: 12-bit
  • Rotor Position Encoder Angular Accuracy: 20 arcmin
  • Brake Holding Torque: 0.4 Nm
  • Operating Voltage DC for Brake: 24V
  • Power Consumption for Brake: 8W
  • Mass Moment of Inertia of Brake: 0.014 kgm²
  • Switching Cycles Holding Brake: 5 million idle actuations (without friction work)
  • Mean Time to Failure (MTTF) for Holding Brake: 371 years
  • Mean Time to Dangerous Failure (MTTFd) for Rotor Position Sensor: 340 years


Product

Manufacturer Material ID -
EMME-AS-40-M-LV-ASB
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85013100
Country of Origin -
DE
UNSPSC -
26101205
