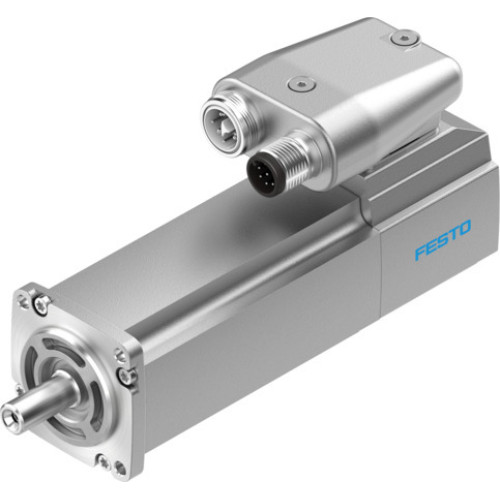

EMME-AS-40-S-LV-AMB Servo motor

Manufacturer's No: EMME-AS-40-S-LV-AMB     Manufacturer: Festo
EMME-AS-40-S-LV-AMB Servo motor

Availability On Request

£1,380.39
  • Servo motor model: EMME-AS-40-S-LV-AMB
  • Without gear unit, with brake
  • Ambient temperature: -10°C to 40°C
  • Storage temperature: -20°C to 70°C
  • Relative air humidity: 0% to 90%
  • Conforms to standard: IEC 60034
  • Insulation protection class: F
  • Rating class as per EN 60034-1: S1
  • Degree of protection: IP21
  • Electrical connector system: Plug

Read more

  • RoHS-compliant materials
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Approvals: RCM trademark, c UL us - Recognized (OL), CE mark (EU EMC Directive, EU Low Voltage Directive, EU RoHS Directive), UKCA marking (UK instructions for EMC, UK RoHS instructions, UK regulations for electrical equipment)
  • Nominal operating voltage DC: 360 V
  • Type of winding switch: Star inside
  • Number of pole pairs: 2
  • Standstill torque: 0.18 Nm
  • Nominal torque: 0.12 Nm
  • Peak torque: 0.7 Nm
  • Nominal rotary speed: 9000 RPM
  • Max. rotational speed: 10000 RPM
  • Nominal power rating of motor: 110 W
  • Continuous stall current: 0.8 A
  • Nominal motor current: 0.7 A
  • Peak current: 3.2 A
  • Motor constant: 0.171 Nm/A
  • Voltage constant, phase-to-phase: 13.5 V/Hz
  • Phase-phase winding resistance: 25.6 Ohm
  • Phase-phase winding inductance: 9.95 mH
  • Total mass moment of inertia of output: 0.055 kgm²
  • Product weight: 650 g
  • Permissible axial shaft load: 12 N
  • Permissible radial shaft load: 105 N
  • Rotor position sensor: Absolute multi-turn encoder
  • Rotor position encoder interface: HIPERFACE®
  • Rotor position sensor, encoder measuring principle: Capacitive
  • Rotor pos. enc., sin/cosin p/r: 16
  • Rotor pos. encoder, typ. res.: 12 BIT
  • Rot. pos. enc., typ. ang. acc.: 20 arcmin
  • Brake holding torque: 0.4 Nm
  • Operating voltage DC for brake: 24 V
  • Power consumption, brake: 8 W
  • Mass moment of inertia of brake: 0.014 kgm²
  • Switching cycles holding brake: 5 million idle actuations
  • Mean time to failure (MTTF), subcomponent: 371 years (holding brake)
  • Mean time to dangerous failure (MTTFd), subcomponent: 271 years (rotor position sensor)


Product

Manufacturer Material ID -
EMME-AS-40-S-LV-AMB
Net Weight -
0.97kg

Additional Product Information

Commodity Code -
85013100
Country of Origin -
DE
UNSPSC -
26101205
