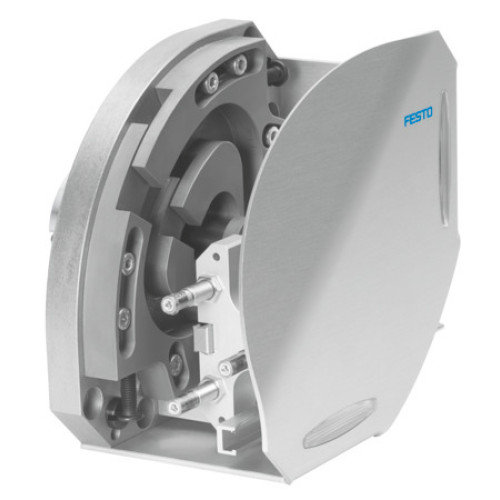

HSW-12-AP-SD-AW Handling module

Manufacturer's No: HSW-12-AP-SD-AW     Manufacturer: Festo
HSW-12-AP-SD-AW Handling module

Availability On Request

£3,764.03
  • Handling module for Pick and Place applications
  • Repositions parts at a 90° angle with protective cover and rest position
  • Working stroke: 15mm to 25mm
  • Size: 12
  • Max. linear stroke at 90° swivel angle: 142mm
  • Maximum Z-stroke: 80mm to 100mm
  • Cushioning: Shock absorber at both ends with a soft characteristic curve
  • Design: Linear guide with ball bearing and semi-rotary drive
  • Force pilot operated motion sequence
  • Position detection via proximity switch

Read more

  • Operating pressure: 4 BAR to 8 BAR
  • Min. cycle time: 0.8s
  • Repetition accuracy of end positions: +/-0.02mm
  • Operating medium: Compressed air to ISO 8573-1:2010
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: 0°C to 60°C
  • Max. moment: 1.5 NM in each direction
  • Max. effective load: 1kg
  • Max. process force in Y direction: 35N
  • Product weight: 3260g
  • Type of mounting: Via through-hole and centring sleeve
  • Pneumatic connection: M5
  • Materials: High-alloy steel, wrought aluminium alloy, anodised finishes, tempered steel, case-hardened steel, burnished, and hardened slotted guide plate


Product

Manufacturer Material ID -
HSW-12-AP-SD-AW
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
23153202
