HSW-16-AS-SD Handling module

Manufacturer's No: HSW-16-AS-SD     Manufacturer: Festo

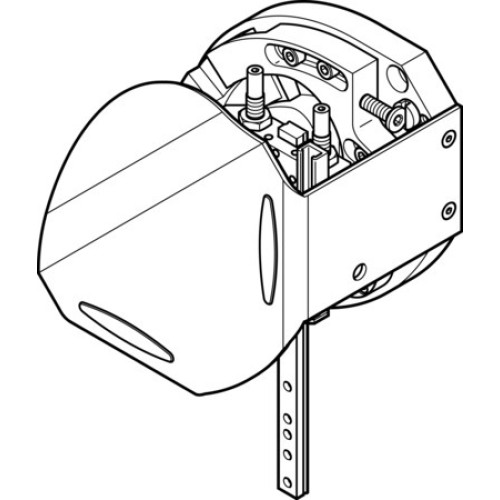

HSW-16-AS-SD Handling module

Availability On Request

£4,153.49
  • Handling module for repositioning parts at a 90° angle
  • Working stroke: 20 mm and 35 mm
  • Size: 16
  • Max. linear stroke at 90° swivel angle: 175/175 mm
  • Z stroke: 80 mm and 100 mm
  • Noise reduction through buffers
  • Design: Drive shaft, linear guide with ball bearing, force pilot operated motion sequence
  • Position detection via proximity switch
  • Repetition accuracy of end positions: +/-0.02 mm
  • LABS (PWIS) conformity: VDMA24364-B2-L

Read more

  • Ambient temperature range: 0°C to 60°C
  • Max. drive torque at drive shaft: 2.5 Nm
  • Max. axial force at drive shaft: 30 N
  • Max. moments: Mx, My, Mz - 2.5 Nm each
  • Max. effective load: 1.5 kg
  • Max. radial force at drive shaft: 75 N
  • Max. process force in Y direction: 50 N
  • Product weight: 5200 g
  • Type of mounting: Via through-hole and centring sleeve
  • Material stops: High-alloy steel
  • Materials: Wrought aluminium alloy, anodised, tempered steel, case-hardened steel, burnished, hardened
  • Material sensor rail: Wrought aluminium alloy, anodised
  • Material setting screw: High-alloy steel


Product

Manufacturer Material ID -
HSW-16-AS-SD
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
23153202
