5212313

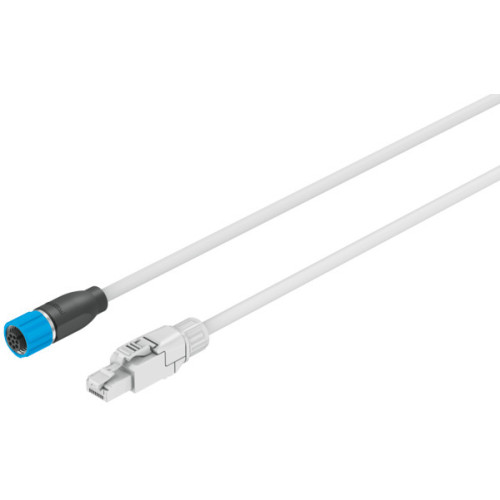

NEBM-M12G8-E-5-N-R3G8 Encoder cable

Manufacturer's No: NEBM-M12G8-E-5-N-R3G8     Manufacturer: Festo
NEBM-M12G8-E-5-N-R3G8 Encoder cable

Availability On Request

£127.29
  • Encoder cable NEBM-M12G8-E-5-N-R3G8
  • Socket M12 (A-coded), 8-pin, TPE-U(PUR) cable, 5m length, suitable for energy chains
  • Plug RJ45, 8-pin, straight
  • Weight: 320g
  • Electrical connection 1: Field device side, M12x1 A-coded socket, 8 cores
  • Electrical connection 2: Controller side, RJ45 plugs, 8 cores
  • Operational voltage range DC: 0-30V, Nominal operating voltage DC: 24V
  • Operational voltage range AC: 0-30V, Nominal operating voltage AC: 24V
  • Shielding: Yes, Cable length: 5m, Suitable for energy chains
  • Bending radius (moving cable): 48mm, Cable diameter: 5.8mm

Read more

  • Cable structure: 1 x 4 x 0.15 mm² + 4 x 1 x 0.34 mm²
  • Degree of protection: IP65, Note: IP30 for Sub-D plug connector
  • Ambient temperature: -40°C to 80°C, Moving cable: -5°C to 80°C
  • CE mark: EU RoHS Directive compliant, UKCA marking: UK RoHS compliant
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Materials: RoHS-compliant, Corrosion resistance class CRC: 0
  • Cable sheath: TPE-U(PUR), Color: Black


Product

Manufacturer Material ID -
NEBM-M12G8-E-5-N-R3G8
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
Festo

Availability On Request

£127.29
