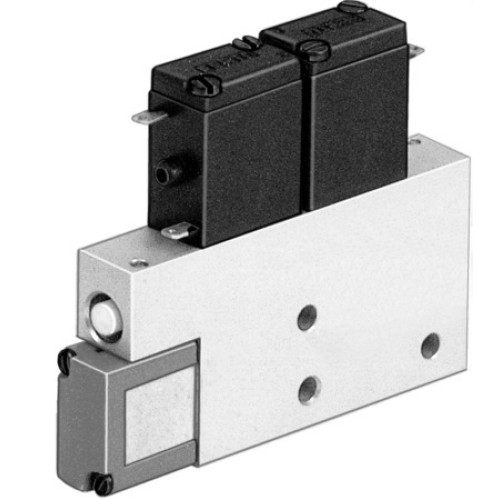

VAD-MYB-I-1/8 Vacuum generator

Manufacturer's No: VAD-MYB-I-1/8     Manufacturer: Festo
VAD-MYB-I-1/8 Vacuum generator

Availability On Request

£393.34
  • Vacuum generator VAD-MYB-I-1/8 with integrated solenoid valve for vacuum On/Off and ejector pulse
  • Nominal size Laval nozzle: 0.7 mm
  • Ejector characteristic: High vacuum
  • Integrated functions: Electric ejector pulse valve, Electric on-off valve
  • Design: T-shaped
  • Operating pressure: 1.5 BAR to 8 BAR
  • Max. vacuum: 90%
  • Duty cycle: 100%
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note: Lubricated operation not possible

Read more

  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Media temperature: 0°C to 50°C
  • Degree of protection: IP65
  • Ambient temperature: 0°C to 50°C
  • Electrical connection: Plugs
  • Type of mounting: Via female thread
  • Pneumatic connection, port 1: M5
  • Vacuum connection: G1/8
  • Material housing: Aluminium


Product

Manufacturer Material ID -
VAD-MYB-I-1/8
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£393.34
