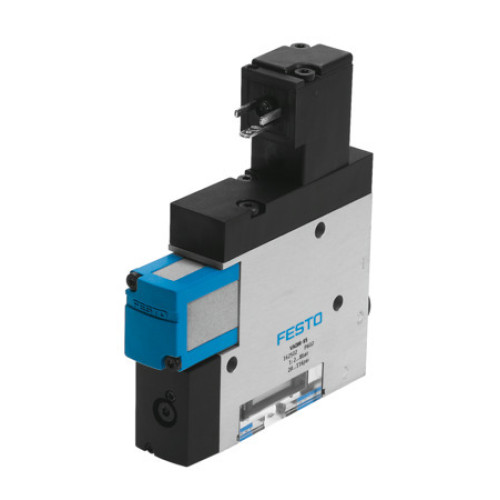

VADM-200 Vacuum generator

Manufacturer's No: VADM-200     Manufacturer: Festo
VADM-200 Vacuum generator

Availability On Request

£307.22
  • Vacuum generator VADM-200 with integrated solenoid valve for vacuum On/Off
  • Nominal size Laval nozzle: 2 mm
  • Grid dimension: 22 mm
  • Silencer design: Closed
  • Ejector characteristic: High vacuum
  • Operating pressure: 0.2 MPa, 0.8 MPa, 2 bar, 8 bar, 29 psi, 116 psi
  • Max. vacuum: 85%
  • Nominal operating pressure: 0.6 MPa, 6 bar, 87 psi
  • Air supply time at nominal operating pressure: 0.29 s
  • Operational voltage range DC: 21.6 V to 26.4 V

Read more

  • Duty cycle: 100%
  • Approval: c UL us - Recognized (OL)
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature: 0°C to 60°C
  • Degree of protection: IP65
  • Ambient temperature: 0°C to 60°C
  • Product weight: 320 g
  • Electrical connection: Plugs
  • Type of mounting: With through-hole, via female thread, either
  • Pneumatic connection, port 1: G1/4
  • Pneumatic connection, port 3: Integrated silencer
  • Vacuum connection: G3/8
  • Material seals: NBR
  • Material receiver nozzle: Brass, nickel-plated
  • Material filter: PA
  • Material filter housing: PC
  • Material housing: Wrought aluminium alloy
  • Material silencer: PE, POM
  • Material piston: POM
  • Material transmitter nozzle: Nickel-plated brass


Product

Manufacturer Material ID -
VADM-200
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
DE
UNSPSC -
30102206
