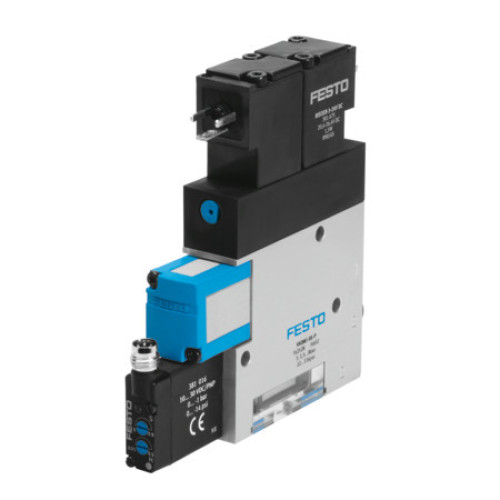

VADMI-140-LS-N Vacuum generator

Manufacturer's No: VADMI-140-LS-N     Manufacturer: Festo
VADMI-140-LS-N Vacuum generator

Availability On Request

£1,016.28
  • Vacuum generator VADMI-140-LS-N with air-saving circuit
  • Nominal size Laval nozzle: 1.4 mm
  • Grid dimension: 22 mm
  • Silencer design: Closed
  • Ejector characteristic: High vacuum
  • Integrated functions: Electric ejector pulse valve, flow control, electric on-off valve, filter, air saving function, check valve, vacuum switch
  • Measured variable: Relative pressure
  • Measuring principle: Piezoresistive
  • Valve function: Closed
  • Operating pressure range: 0.2 MPa to 8 MPa

Read more

  • Max. vacuum: 85%
  • Nominal operating pressure: 0.6 MPa to 6 Bar
  • Max. overload pressure: 5 Bar
  • Air supply time at nominal operating pressure with ejector pulse: 0.19 s
  • Operational voltage range DC: 21.6 V to 26.4 V
  • Duty cycle: 100%
  • Switching output: NPN
  • Approvals: RCM trademark, c UL us - Recognized (OL), CE mark, UKCA marking
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • Degree of protection: IP65
  • Ambient temperature range: 0°C to 50°C
  • Product weight: 330 g
  • Pressure measuring range: 0 MPa to 1 Bar
  • Electrical connection: 4-pin, M8x1, plugs
  • Type of mounting: With through-hole, via female thread
  • Pneumatic connection port 1: G1/8
  • Pneumatic connection port 3: Integrated silencer
  • Vacuum connection: G1/4
  • Material seals: NBR
  • Material receiver nozzle: Brass, nickel-plated
  • Material filter: PA
  • Material filter housing: PC
  • Material housing: Wrought aluminium alloy
  • Material silencer: PE, POM
  • Material piston: POM
  • Material transmitter nozzle: Nickel-plated brass


Product

Manufacturer Material ID -
VADMI-140-LS-N
Net Weight -
0.70kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£1,016.28
