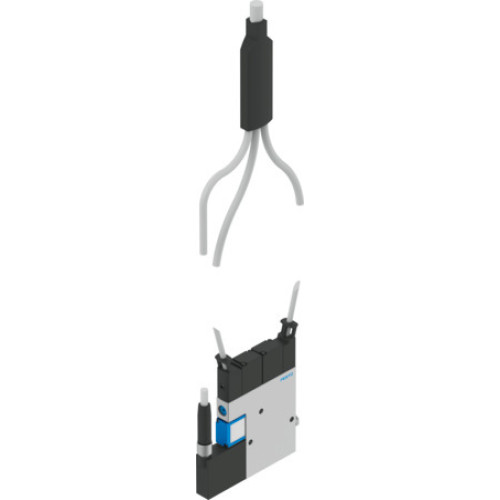

VADMI-45-LS-N Vacuum generator

Manufacturer's No: VADMI-45-LS-N     Manufacturer: Festo
VADMI-45-LS-N Vacuum generator

Availability On Request

£966.45
  • Vacuum generator VADMI-45-LS-N with air-saving circuit
  • Nominal size Laval nozzle: 0.45 mm
  • Grid dimension: 10 mm
  • Silencer design: Closed
  • Ejector characteristic: High vacuum
  • Grade of filtration: 40 MIM
  • Integrated functions: Electric ejector pulse valve, flow control, electric on-off valve, filter, air saving function, check valve, vacuum switch
  • Measured variable: Relative pressure
  • Measuring principle: Piezoresistive
  • Switching element function: N/O contact

Read more

  • Switching function: Threshold value comparator
  • Valve function: Closed
  • Display type: LED
  • Setting range hysteresis: -0.06 kPa, -0.01 kPa, -0.6 bar, -0.1 bar, -8.7 psi, -1.45 psi
  • Setting options: Potentiometer
  • Switching status indication: Optical
  • Setting range threshold value: -0.09 kPa, -0.02 kPa, -0.9 bar, -0.2 bar, -13.05 psi, -2.9 psi
  • Operating pressure: 0.15 MPa, 0.8 MPa, 1.5 bar, 8 bar, 21.75 psi, 116 psi
  • Max. vacuum: 85%
  • Nominal operating pressure: 0.6 MPa, 6 bar, 87 psi
  • Max. overload pressure: 5 bar
  • Air supply time at nominal operating pressure with ejector pulse: 1.9 s
  • Operational voltage range DC: 21.6 V - 26.4 V
  • Duty cycle: 100%
  • Switching output: NPN
  • Approvals: RCM trademark, c UL us - Recognized (OL), CE mark, UKCA marking
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature: 0°C - 60°C
  • Degree of protection: IP65
  • Ambient temperature: 0°C - 50°C
  • Product weight: 90 g
  • Pressure measuring range: 0 MPa - 0.1 MPa, 0 bar - 1 bar, 0 psi - 14.5 psi
  • Electrical connection: 4-pin, M8x1, plugs
  • Type of mounting: With through-hole, via female thread, either
  • Pneumatic connection, port 1: M5
  • Pneumatic connection, port 3: Integrated silencer
  • Vacuum connection: M5
  • Materials: RoHS-compliant, NBR seals, brass nickel-plated receiver nozzle, PA filter, PC filter housing, wrought aluminium alloy housing, PE and POM silencer, POM piston, nickel-plated brass transmitter nozzle


Product

Manufacturer Material ID -
VADMI-45-LS-N
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
DE
UNSPSC -
30102206
