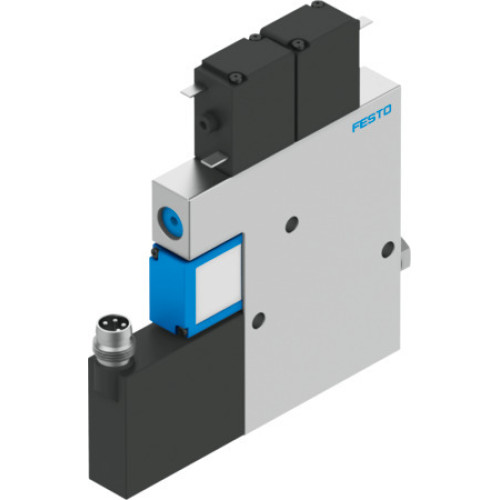

VADMI-45-P Vacuum generator

Manufacturer's No: VADMI-45-P     Manufacturer: Festo
VADMI-45-P Vacuum generator

Availability On Request

£632.76
  • Vacuum generator VADMI-45-P with additional vacuum switch, PNP design
  • Nominal size Laval nozzle: 0.45 mm, Grid dimension: 10 mm
  • Silencer design: Closed, Assembly position: Any, Ejector characteristic: High vacuum
  • Integrated functions: Electric ejector pulse valve, Flow control, Electric on-off valve, Filter, Check valve, Vacuum switch
  • Measured variable: Relative pressure, Measuring principle: Piezoresistive
  • Switching element function: N/O contact, Switching function: Threshold value comparator
  • Operating pressure: 0.15 MPa to 8 MPa, Max. vacuum: 85%, Nominal operating pressure: 0.6 MPa to 6 Bar
  • Max. overload pressure: 5 Bar, Air supply time at nominal operating pressure with ejector pulse: 1.9 s
  • Operational voltage range DC: 21.6 V to 26.4 V, Duty cycle: 100%, Switching output: PNP
  • Approvals: RCM trademark, c UL us - Recognized (OL), CE mark, UKCA marking

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Corrosion resistance class CRC: 2
  • Degree of protection: IP65, Ambient temperature: 0°C to 50°C, Product weight: 90 g
  • Pressure measuring range: 0 MPa to 1 Bar, Electrical connection: 4-pin, M8x1, Plugs
  • Type of mounting: With through-hole, Via female thread, Either
  • Pneumatic connection, port 1: M5, Pneumatic connection, port 3: Integrated silencer, Vacuum connection: M5
  • Materials: RoHS-compliant, Seals: NBR, Receiver nozzle: Brass, nickel-plated, Filter: PA, Filter housing: PC, Housing: Wrought aluminium alloy
  • Silencer: PE, POM, Piston: POM, Transmitter nozzle: Nickel-plated brass


Product

Manufacturer Material ID -
VADMI-45-P
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£632.76
