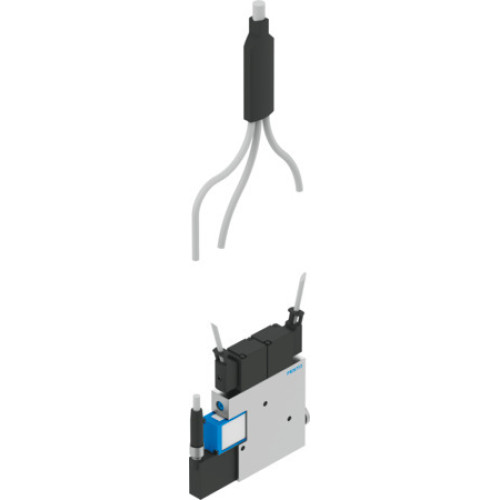

VADMI-70-LS-N Vacuum generator

Manufacturer's No: VADMI-70-LS-N     Manufacturer: Festo
VADMI-70-LS-N Vacuum generator

Availability On Request

£966.45
  • Vacuum generator VADMI-70-LS-N with air-saving circuit
  • Nominal size Laval nozzle: 0.7 mm
  • Grid dimension: 15 mm
  • Silencer design: Closed
  • Ejector characteristic: High vacuum
  • Integrated functions: Electric ejector pulse valve, flow control, electric on-off valve, filter, air saving function, check valve, vacuum switch
  • Measured variable: Relative pressure
  • Measuring principle: Piezoresistive
  • Switching element function: N/O contact
  • Valve function: Closed

Read more

  • Display type: LED
  • Setting range hysteresis: -0.01 to -0.6 BAR, -1.45 to -8.7 PSI
  • Setting options: Potentiometer
  • Operating pressure: 0.15 to 8 BAR, 21.75 to 116 PSI
  • Max. vacuum: 85%
  • Nominal operating pressure: 0.6 MPA, 6 BAR, 87 PSI
  • Max. overload pressure: 5 BAR
  • Air supply time at nominal operating pressure with ejector pulse: 0.59 s
  • Operational voltage range DC: 21.6 to 26.4 V
  • Duty cycle: 100%
  • Switching output: NPN
  • Approvals: RCM trademark, c UL us - Recognized (OL), CE mark, UKCA marking
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature: 0 to 60°C
  • Degree of protection: IP65
  • Ambient temperature: 0 to 50°C
  • Product weight: 180 g
  • Pressure measuring range: 0 to 1 BAR, 0 to 14.5 PSI
  • Electrical connection: 4-pin, M8x1, plugs
  • Type of mounting: With through-hole, via female thread
  • Pneumatic connection, port 1: M5
  • Pneumatic connection, port 3: Integrated silencer
  • Vacuum connection: G1/8
  • Material seals: NBR
  • Material receiver nozzle: Brass, nickel-plated
  • Material filter: PA
  • Material filter housing: PC
  • Material housing: Wrought aluminium alloy
  • Material silencer: PE, POM
  • Material piston: POM
  • Material transmitter nozzle: Nickel-plated brass
  • Note: RoHS-compliant, lubricated operation not possible


Product

Manufacturer Material ID -
VADMI-70-LS-N
Net Weight -
0.47kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£966.45
