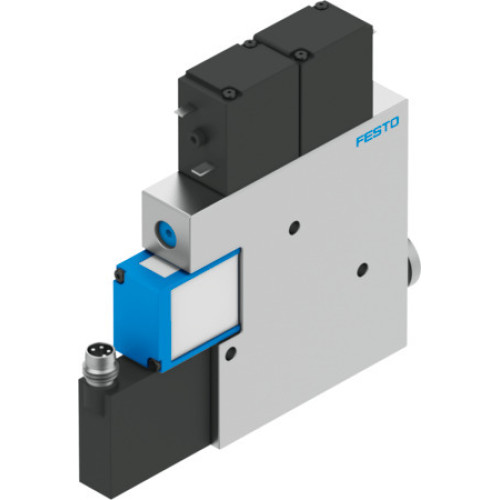

VADMI-70-N Vacuum generator

Manufacturer's No: VADMI-70-N     Manufacturer: Festo
VADMI-70-N Vacuum generator

Availability On Request

£632.76
  • Vacuum generator VADMI-70-N with additional vacuum switch, NPN design
  • Nominal size Laval nozzle: 0.7 mm, Grid dimension: 15 mm
  • Silencer design: Closed, Assembly position: Any, Ejector characteristic: High vacuum
  • Integrated functions: Electric ejector pulse valve, Flow control, Electric on-off valve, Filter, Check valve, Vacuum switch
  • Measured variable: Relative pressure, Measuring principle: Piezoresistive
  • Switching element function: N/O contact, Switching function: Threshold value comparator
  • Valve function: Closed, Reverse polarity protection for all electrical connections
  • Display type: LED, Setting options: Potentiometer, Switching status indication: Optical
  • Operating pressure: 0.15 MPa to 8 MPa, Max. vacuum: 85%
  • Nominal operating pressure: 0.6 MPa to 6 BAR, Max. overload pressure: 5 BAR

Read more

  • Air supply time at nominal operating pressure with ejector pulse: 0.59 s
  • Operational voltage range DC: 21.6 V to 26.4 V, Duty cycle: 100%, Switching output: NPN
  • Approvals: RCM trademark, c UL us - Recognized (OL), CE mark, UKCA marking
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Note on operating and pilot medium: Lubricated operation not possible
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress, LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature: 0°C to 60°C, Degree of protection: IP65, Ambient temperature: 0°C to 50°C
  • Product weight: 180 g, Electrical connection: 4-pin, M8x1, Plugs
  • Type of mounting: With through-hole, Via female thread, Either
  • Pneumatic connection, port 1: M5, Port 3: Integrated silencer, Vacuum connection: G1/8
  • Note on materials: RoHS-compliant, Material seals: NBR, Receiver nozzle: Brass, nickel-plated
  • Material filter: PA, Filter housing: PC, Housing: Wrought aluminium alloy
  • Silencer: PE, POM, Piston: POM, Transmitter nozzle: Nickel-plated brass


Product

Manufacturer Material ID -
VADMI-70-N
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£632.76
