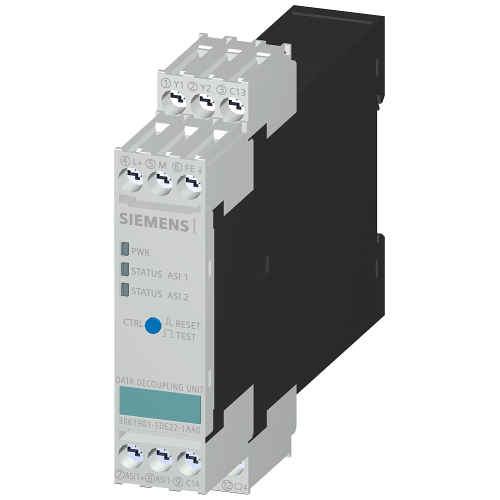

3RK19011DE221AA0

AS-Interface data decoupl. 2x 4 A screw terminals AS-Interface

Manufacturer's No: 3RK1901-1DE22-1AA0     Manufacturer: Siemens
AS-Interface data decoupl. 2x 4 A screw terminals AS-Interface

View 3D

Availability Back Order

£146.24
  • AS-i data decoupler
    • 2 x 4 A Screw terminals
    • AS-i dual Data decoupling module
    • SlimLine S22.5 design
    • Overall width of module: 22.5 mm
    • Input: 24 V / 30 V DC
    • Output: 2 x AS-i, 4 A
    • Integrated overload protection
    • Integrated ground fault detection
    • Signaling contact
    • Remote reset
  • 2 x 4 A Screw terminals
  • AS-i dual Data decoupling module
  • SlimLine S22.5 design
  • Overall width of module: 22.5 mm
  • Input: 24 V / 30 V DC
  • Output: 2 x AS-i, 4 A
  • Integrated overload protection
  • Integrated ground fault detection
  • Signaling contact

Read more

  • Remote reset


Product

Manufacturer Material ID -
3RK1901-1DE22-1AA0
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Depth -
121.2 Millimetre
Height -
101.3 Millimetre
Input voltage at DC -
21 Volt
Max. input current DC -
8.2 Ampere
Max. output current DC -
4 Ampere
Output voltage at DC -
24 Volt
Suitable for safety functions -
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Width -
22.5 Millimetre

Availability Back Order

£146.24
