3RK11051BE040CA0

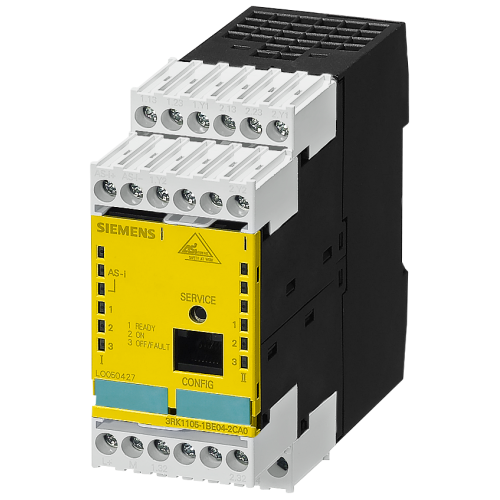

ASIsafe Basic safety monitor 2 F-RO, 2 enabling circuits, IP20

Manufacturer's No: 3RK1105-1BE04-0CA0     Manufacturer: Siemens
ASIsafe Basic safety monitor 2 F-RO, 2 enabling circuits, IP20

View 3D

Availability Back Order

POA
  • ASIsafe Basis Safety monitor 2 F-RO 2
  • Monitor type 2, Version 3
  • Safe output relay with response time maximum 40 ms
  • Can be used up to Category 4 (EN954-1), up to PL E (EN ISO 13849-1), up to SIL 3 (IEC 61508)
  • IP20 protection rating
  • Screw terminal removable terminals


Product

Manufacturer Material ID -
3RK1105-1BE04-0CA0
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

-
Siemens
Voltage type of supply voltage -
UN
Explosion safety category for gas -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Degree of protection (IP) -
IP20
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Performance level acc. to EN ISO 13849-1 -
Level e
Degree of protection (IP rating) -
IP20
Depth -
120 Millimetre
Explosion safety category for dust -
None
Height -
108 Millimetre
SIL according to IEC 61508 -
3
Suitable for safety functions -
Supporting protocol for ASI -
Supporting protocol for AS-Interface Safety at Work -
System accessory -
Width -
45 Millimetre
With potential separation -
