3RK14000CE000AA3

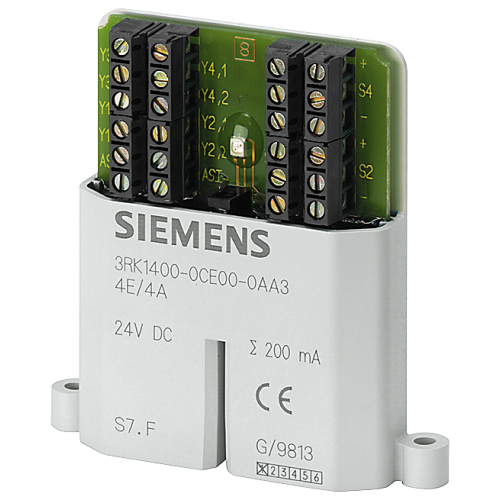

AS-i flat module, 4 I/4 Q, screw terminal, 4x1 input PNP, 4 x output 45 mA, 24 V DC

Manufacturer's No: 3RK1400-0CE00-0AA3     Manufacturer: Siemens
AS-i flat module, 4 I/4 Q, screw terminal, 4x1 input PNP, 4 x output 45 mA, 24 V DC

View 3D

Availability Back Order

£118.87
  • AS-i flat module
  • Digital 4 inputs / 4 outputs
  • IP20 rated
  • Inputs for 3-wire sensors
  • 24 V DC output
  • Output supply via U_ASI
  • Screw terminals


Product

Manufacturer Material ID -
3RK1400-0CE00-0AA3
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
Siemens
Time delay at signal exchange -
- Millisecond
Output current -
- Ampere
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Type of digital output -
Other
Type of electric connection -
Screw connection
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20
Depth -
79.8 Millimetre
Height -
81.5 Millimetre
Input current at signal 1 -
5 Milliampere
Number of digital inputs -
4
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Short-circuit protection, outputs available -
Supporting protocol for ASI -
System accessory -
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
18.5 Millimetre
