3RK11001CQ200AA3

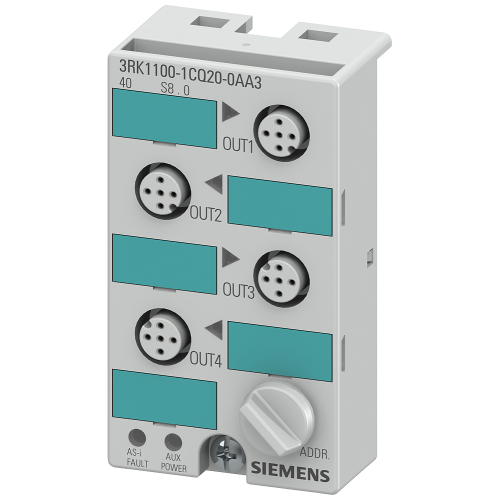

AS-i compact module K45, IP67, digital, 4 output, 4x1 output, electr., 24 V DC max. 3 A

Manufacturer's No: 3RK1100-1CQ20-0AA3     Manufacturer: Siemens
AS-i compact module K45, IP67, digital, 4 output, 4x1 output, electr., 24 V DC max. 3 A

Availability Available to order

£150.63
  • AS-i compact module K45 digital 4 DQ
  • IP67 rated
  • 4 x outputs, 1 A each at 24 V DC
  • Max total output of 3 A
  • 4 x M12 sockets
  • Mounting plate options: 3RK1901-2EA00 or 3RK1901-2DA00 (sold separately)

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3RK1100-1CQ20-0AA3
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Input current at signal 1 -
- Milliampere
Time delay at signal exchange -
- Millisecond
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP67
Number of interfaces PROFINET -
0
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP67
Depth -
30 Millimetre
Height -
80 Millimetre
Number of digital inputs -
0
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
1 Ampere
Short-circuit protection, outputs available -
Supporting protocol for ASI -
System accessory -
Type of digital output -
Other
Type of electric connection -
Screw connection
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
45 Millimetre

Availability Available to order

£150.63
