3RK11071BQ400AA3

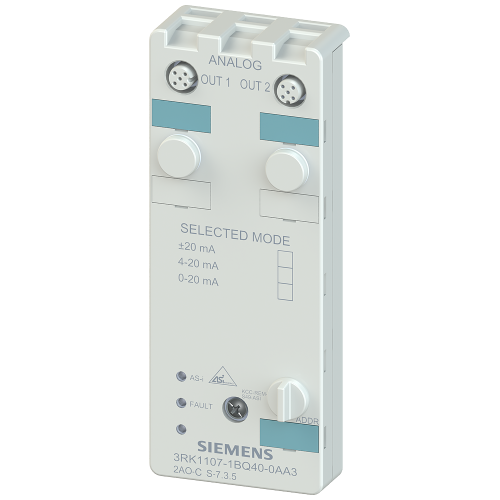

AS-i compact module, IP67 analog, 2 AQ, number format S7, 2x1 output (M12), 4-20 mA

Manufacturer's No: 3RK1107-1BQ40-0AA3     Manufacturer: Siemens
AS-i compact module, IP67 analog, 2 AQ, number format S7, 2x1 output (M12), 4-20 mA

View 3D

Availability Back Order

£283.07
  • AS-i compact module K60 analog 2 AQ
  • IP67 rated
  • 2 x 1 output for current signals (0-20 mA, 4-20 mA, +/- 20 mA)
  • Suitable for 2-wire actuators
  • 2 x M12 socket connectors
  • Mounting plate 3RK1901-0CA00 to be ordered separately

Selectable mandatory product

Accessories

AS-i accessory M12 cover for IP67 modules

Product Code - 3RK19011KA00
Price £1.09
In Stock


Product

Manufacturer Material ID -
3RK1107-1BQ40-0AA3
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Voltage type of supply voltage -
UN
Number of HW-interfaces USB -
-
Explosion safety category for gas -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP67
Number of interfaces PROFINET -
0
Resolution of the analogue outputs -
12 Bit
Type of electric connection -
Screw connection
Analogue outputs configurable -
Degree of protection (IP rating) -
IP67
Depth -
29 Millimetre
Explosion safety category for dust -
None
Height -
152 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces Wireless -
0
Output signal configurable -
Output, current -
Resolution of the analogue inputs -
12 Bit
Supporting protocol for ASI -
System accessory -
Width -
60 Millimetre

Availability Back Order

£283.07
