3RK12073BQ440AA3

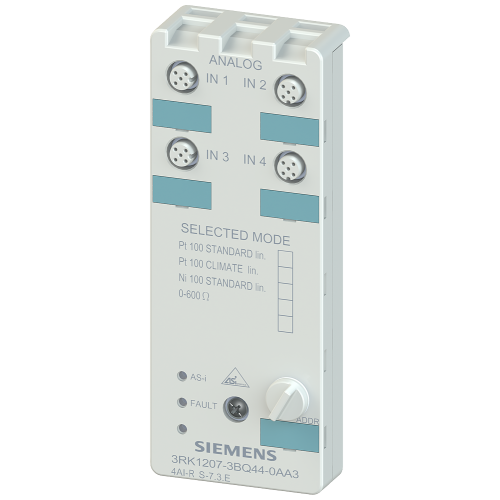

AS-i compact module, IP67 analog, 4 AI 4x inputs (M12), Pt100 LIN. unit

Manufacturer's No: 3RK1207-3BQ44-0AA3     Manufacturer: Siemens
AS-i compact module, IP67 analog, 4 AI 4x inputs (M12), Pt100 LIN. unit

View 3D

Availability Back Order

£307.02
  • AS-i compact module K60 analog 4 AI
  • IP67 rated for outdoor use
  • 4 x inputs for Pt100, Ni100, 0-600 ohm 4-wire sensors
  • 4 x M12 sockets for connections
  • Mounting plate 3RK1901-0CA00 to be ordered separately

Selectable mandatory product

Accessories

AS-i accessory M12 cover for IP67 modules

Product Code - 3RK19011KA00
Price £1.09
In Stock


Product

Manufacturer Material ID -
3RK1207-3BQ44-0AA3
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Voltage type of supply voltage -
UN
Number of HW-interfaces USB -
-
Explosion safety category for gas -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP67
Number of interfaces PROFINET -
0
Resolution of the analogue outputs -
16 Bit
Type of electric connection -
Screw connection
Analogue inputs configurable -
Degree of protection (IP rating) -
IP67
Depth -
29 Millimetre
Explosion safety category for dust -
None
Height -
152 Millimetre
Input signal, configurable -
Input, resistance thermometer -
Input, resistor -
Number of analogue inputs -
4
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces Wireless -
0
Resolution of the analogue inputs -
16 Bit
Supporting protocol for ASI -
System accessory -
Width -
60 Millimetre

Availability Back Order

£307.02
