3RK14000GQ200AA3

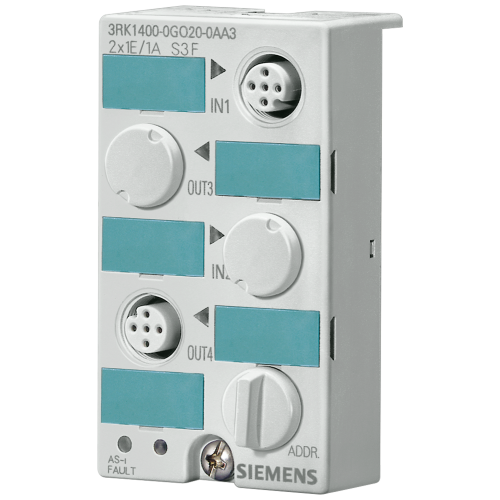

AS-i compact module K45, digital, 2x 1 I/1 Q, IP67, 2x1 input/output 2xM12 socket

Manufacturer's No: 3RK1400-0GQ20-0AA3     Manufacturer: Siemens
AS-i compact module K45, digital, 2x 1 I/1 Q, IP67, 2x1 input/output 2xM12 socket

View 3D

Availability Back Order

£119.73
  • AS-i compact module K45 digital
  • 2 digital inputs and 2 digital outputs
  • IP67 rated for dust and water resistance
  • 2 M12 sockets for connections
  • Total current for all inputs and outputs: 200 mA max
  • Power supply for I/O via U_ASI
  • Compatible with mounting plates 3RK1901-2EA00 or 3RK1901-2DA00 (sold separately)

Selectable mandatory product

Accessories

AS-i accessory M12 cover for IP67 modules

Product Code - 3RK19011KA00
Price £1.09
In Stock


Product

Manufacturer Material ID -
3RK1400-0GQ20-0AA3
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Time delay at signal exchange -
- Millisecond
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP67
Number of interfaces PROFINET -
0
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP67
Depth -
30 Millimetre
Height -
80 Millimetre
Input current at signal 1 -
6 Milliampere
Number of digital inputs -
2
Number of digital outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
0.2 Ampere
Supporting protocol for ASI -
System accessory -
Type of digital output -
Other
Type of electric connection -
Screw connection
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
45 Millimetre

Availability Back Order

£119.73
