3RK14001CR000AA3

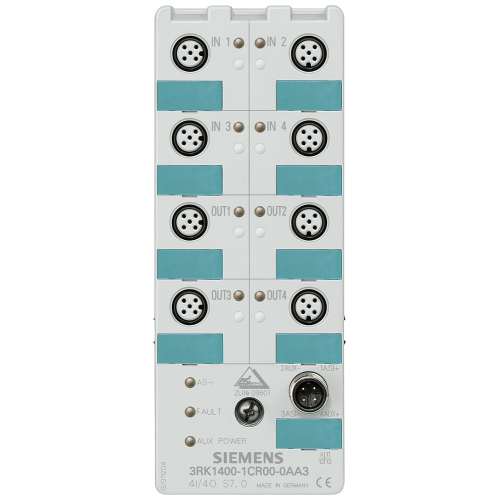

AS-i compact module IP68 digital, 4 I/4 Q, 4x1 input, max. 200 mA

Manufacturer's No: 3RK1400-1CR00-0AA3     Manufacturer: Siemens
AS-i compact module IP68 digital, 4 I/4 Q, 4x1 input, max. 200 mA

Availability Available to order

£223.75
  • AS-i compact module K60
  • 4 digital inputs, 4 digital outputs
  • IP68 rated
  • Input: 4 x 200 mA
  • Output: 4 x 2 A, 24 V DC (max 4 A for all outputs)
  • 8 x M12 sockets
  • Mounting plate 3RK1901-0CA00 to be ordered separately

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3RK1400-1CR00-0AA3
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Time delay at signal exchange -
- Millisecond
Degree of protection (IP) -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Number of interfaces PROFINET -
0
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Depth -
29 Millimetre
Height -
152 Millimetre
Input current at signal 1 -
6 Milliampere
Number of digital inputs -
4
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
2 Ampere
Short-circuit protection, outputs available -
Supporting protocol for ASI -
System accessory -
Type of digital output -
Other
Type of electric connection -
Screw connection
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
60 Millimetre

Availability Available to order

£223.75
