3RK22000CQ200AA3

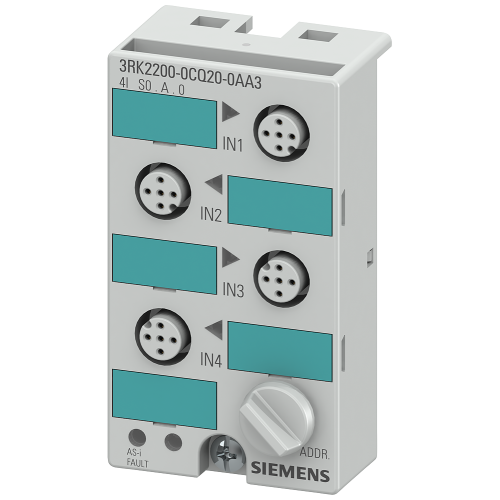

AS-i compact module K45, A/B slave, IP67, digital, 4x1 input, max. 200 mA, PNP

Manufacturer's No: 3RK2200-0CQ20-0AA3     Manufacturer: Siemens
AS-i compact module K45, A/B slave, IP67, digital, 4x1 input, max. 200 mA, PNP

View 3D

Availability In Stock

£128.28
  • AS-i compact module K45 digital A/B slave
  • 4 digital inputs
  • IP67 rated
  • Maximum current: 200 mA
  • 4 x M12 sockets
  • Mounting plate options: 3RK1901-2EA00 or 3RK1901-2DA00 (to be ordered separately)

Selectable mandatory product

Accessories

AS-i accessory M12 cover for IP67 modules

Product Code - 3RK19011KA00
Price £1.09
In Stock


Product

Manufacturer Material ID -
3RK2200-0CQ20-0AA3
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Time delay at signal exchange -
- Millisecond
Output current -
- Ampere
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP67
Number of interfaces PROFINET -
0
Type of digital output -
None
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP67
Depth -
30 Millimetre
Height -
80 Millimetre
Input current at signal 1 -
6 Milliampere
Number of digital inputs -
4
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Supporting protocol for ASI -
System accessory -
Type of electric connection -
Screw connection
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
45 Millimetre
