3RK22000DQ000AA3

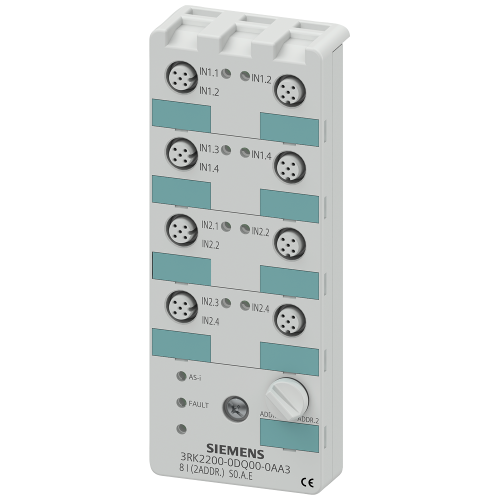

AS-i compact module K60, A/B slave, digital, 8I, IP67, 8x1 input 8xM12 socket

Manufacturer's No: 3RK2200-0DQ00-0AA3     Manufacturer: Siemens
AS-i compact module K60, A/B slave, digital, 8I, IP67, 8x1 input 8xM12 socket

View 3D

Availability Back Order

£246.30
  • AS-i compact module K60 digital A/B slave
  • 8 digital inputs with 200 mA maximum
  • IP67 rated for protection
  • 8 M12 socket connections with Y-II assignment
  • Mounting plate 3RK1901-0CA00 required (sold separately)

Selectable mandatory product

Accessories

AS-i accessory M12 cover for IP67 modules

Product Code - 3RK19011KA00
Price £1.09
In Stock


Product

Manufacturer Material ID -
3RK2200-0DQ00-0AA3
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Time delay at signal exchange -
- Millisecond
Output current -
- Ampere
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP67
Number of interfaces PROFINET -
0
Type of digital output -
None
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP67
Depth -
29 Millimetre
Height -
152 Millimetre
Input current at signal 1 -
6 Milliampere
Number of digital inputs -
8
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Supporting protocol for ASI -
System accessory -
Type of electric connection -
Screw connection
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
60 Millimetre
