3RK22072BQ500AA3

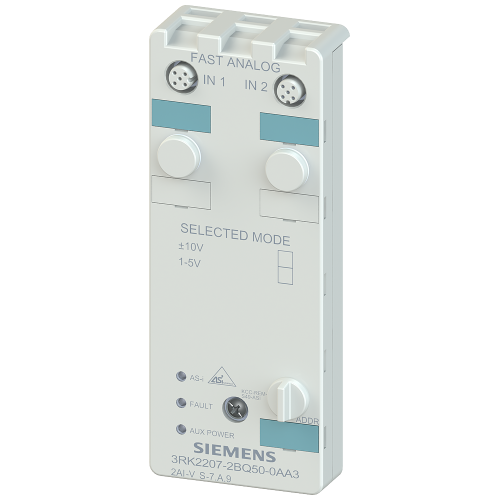

AS-i compact module K60, IP67, A/B slave (Spec. 3.0), analog, 2 AI (1 AI)

Manufacturer's No: 3RK2207-2BQ50-0AA3     Manufacturer: Siemens
AS-i compact module K60, IP67, A/B slave (Spec. 3.0), analog, 2 AI (1 AI)

Availability Available to order

£297.74
  • AS-i compact module K60 analog A/B slave
  • 2 analog inputs: Voltage range +/- 10 V, 1-5 V for 4-wire sensors
  • IP67 rated for dust and water resistance
  • 2 x M12 sockets for connectivity
  • Mounting plate 3RK1901-0CA00 available for separate order

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3RK2207-2BQ50-0AA3
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Voltage type of supply voltage -
UN
Number of HW-interfaces USB -
-
Explosion safety category for gas -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP67
Number of interfaces PROFINET -
0
Resolution of the analogue outputs -
14 Bit
Type of electric connection -
Screw connection
Analogue inputs configurable -
Degree of protection (IP rating) -
IP67
Depth -
29 Millimetre
Explosion safety category for dust -
None
Height -
152 Millimetre
Input signal, configurable -
Input, voltage -
Number of analogue inputs -
2
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces Wireless -
0
Output, voltage -
Resolution of the analogue inputs -
14 Bit
Supporting protocol for ASI -
System accessory -
Width -
60 Millimetre

Availability Available to order

£297.74
