3RK24001DQ000AA3

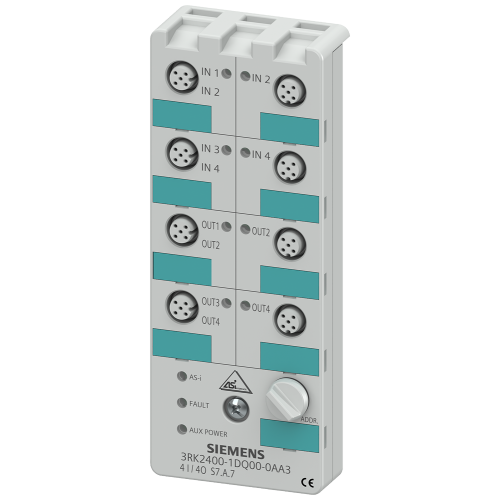

AS-i compact module K60, IP67, A/B slave (SPEC 3.0), digital, 4 DI/4 DQ, 4x input

Manufacturer's No: 3RK2400-1DQ00-0AA3     Manufacturer: Siemens
AS-i compact module K60, IP67, A/B slave (SPEC 3.0), digital, 4 DI/4 DQ, 4x input

View 3D

Availability Back Order

£201.83
  • AS-i compact module K60 digital A/B slave
  • 4 digital inputs and 4 digital outputs
  • IP67 rated
  • Input: 4 x 200 mA
  • Output: 4 x 2 A at 24 V DC (max 4 A total)
  • 8 x M12 sockets with Y-II assignment
  • Mounting plate 3RK1901-0CA00 to be ordered separately

Selectable mandatory product

Accessories

AS-i accessory M12 cover for IP67 modules

Product Code - 3RK19011KA00
Price £1.09
In Stock


Product

Manufacturer Material ID -
3RK2400-1DQ00-0AA3
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Time delay at signal exchange -
- Millisecond
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP67
Number of interfaces PROFINET -
0
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP67
Depth -
29 Millimetre
Height -
152 Millimetre
Input current at signal 1 -
6 Milliampere
Number of digital inputs -
4
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
2 Ampere
Short-circuit protection, outputs available -
Supporting protocol for ASI -
System accessory -
Type of digital output -
Other
Type of electric connection -
Screw connection
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
60 Millimetre

Availability Back Order

£201.83
