6XV18502EH20

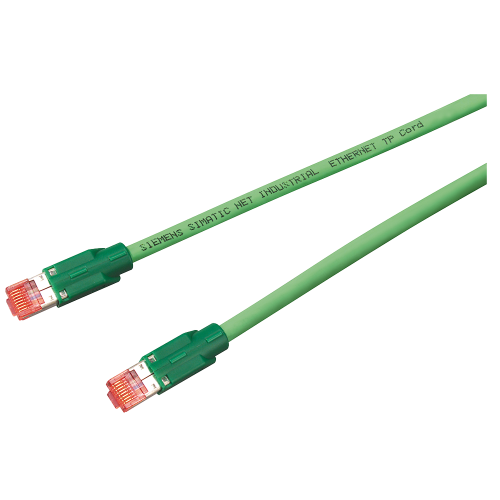

IE TP converter cable 15/RJ45, with 1x 15-pin ITP socket + 1x RJ45 connector, 2 m

Manufacturer's No: 6XV1850-2EH20     Manufacturer: Siemens
IE TP converter cable 15/RJ45, with 1x 15-pin ITP socket + 1x RJ45 connector, 2 m

Availability Back Order

£57.00
  • TP converter cord 15/RJ45 for Industrial Ethernet
  • Pre-assembled with 1x 15-pole ITP socket and 1x RJ45 unit
  • Transforms RJ45 terminal system to ITP terminal system
  • Includes mounting bracket
  • Length: 2 meters


Product

Manufacturer Material ID -
6XV1850-2EH20
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85444210
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
26121609

Technical Specification

-
Siemens
AWG-size -
-
Anti-kink sleeve -
UN
Cable construction -
UN
Colour anti-kink sleeve -
UN
Case connector connection 1 -
UN
Case connector connection 2 -
UN
Material connector of connector housing connection 2 -
UN
NVP value -
- Percentage
Cable type -
S/FTP
Pin assignment -
1:1
Length -
1 Metre
Colour outer sheath -
Other
Type of connector connection 1 -
Other
Type of connector connection 2 -
RJ45 8(4)
Degree of protection (IP) -
IP20
Material connector of connector housing connection 1 -
Metal
Core insulation material -
Other
Flame retardant -
No
Circuit integrity -
No
Sheath colour -
Other
Sheath material -
Polyvinyl chloride (PVC)
Protective sheath -
No
Stranding -
Bundle
Reaction-to-fire according to EN 13501-6: Class -
None
Sheath material specification -
Other
Category -
5E
Conductor Diameter -
0.48 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
Foil
Min. permitted bending radius, moving application with forced guidance -
42 Millimetre
Min. permitted bending radius, moving application/free movement -
42 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
42 Millimetre
Number of cores -
4
Number of stranding elements -
2
Overall screen type -
Braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Stranding element -
Pairs

Availability Back Order

£57.00
