6XV18715TH20

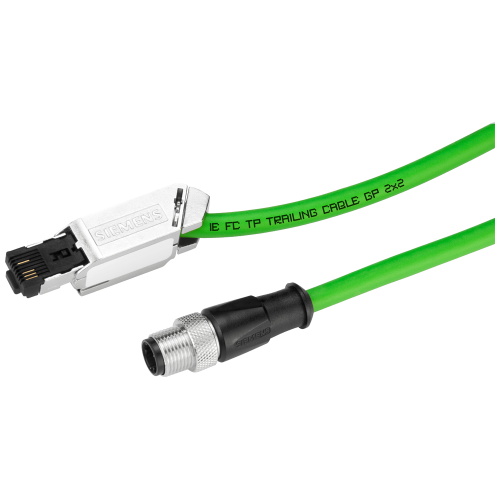

IE connecting cable M12-180/IE FC RJ45 plug-145, 2 m, for commissioning/service/installation

Manufacturer's No: 6XV1871-5TH20     Manufacturer: Siemens
IE connecting cable M12-180/IE FC RJ45 plug-145, 2 m, for commissioning/service/installation

Availability In Stock

£47.00
  • Connecting cable with M12-180/IE FC RJ45 Plug-145
  • IE FC Trailing cable GP pre-assembled with M12 connector (D-coded) and IE FC RJ45 plug
  • Cable length: 2.0 meters


Product

Manufacturer Material ID -
6XV1871-5TH20
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85444210
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
26121609

Technical Specification

-
Siemens
AWG-size -
-
Anti-kink sleeve -
UN
Cable construction -
UN
Colour anti-kink sleeve -
UN
Case connector connection 1 -
UN
Case connector connection 2 -
UN
Material connector of connector housing connection 1 -
UN
Material connector of connector housing connection 2 -
UN
Cable type -
SF/FTP
Pin assignment -
1:1
Length -
2 Metre
Colour outer sheath -
Green
Type of connector connection 1 -
M12
Type of connector connection 2 -
RJ45 8(4)
Degree of protection (IP) -
Other
Core insulation material -
Other
Flame retardant -
No
Circuit integrity -
No
Sheath material -
Polyvinyl chloride (PVC)
Protective sheath -
No
Stranding -
Bundle
Reaction-to-fire according to EN 13501-6: Class -
None
Sheath material specification -
Other
Category -
5E
Conductor Diameter -
0.75 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
49 Millimetre
Min. permitted bending radius, moving application/free movement -
49 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
49 Millimetre
Number of cores -
4
Number of stranding elements -
2
NVP value -
66 Percentage
Outer diameter approx. -
6.5 Millimetre
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-25 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-25 Degrees celsius
Sheath colour -
Green
Stranding element -
Quad

Availability In Stock

£47.00
