6XV18782T

IE TP Train Cable 4X2; Cat7 TP Installation Cable F. Train Applications, for Connection-FC M12 Plug Pro 4X2, Train Certified, 8 Wi

Manufacturer's No: 6XV1878-2T     Manufacturer: Siemens
IE TP Train Cable 4X2; Cat7 TP Installation Cable F. Train Applications, for Connection-FC M12 Plug Pro 4X2, Train Certified, 8 Wire, Shielded, Sold By The Meter

Availability Back Order

£12.00
  • Cable Type: CAT7 TP installation cable
  • Application: Rail applications
  • Connector: FC M12 Plug PRO

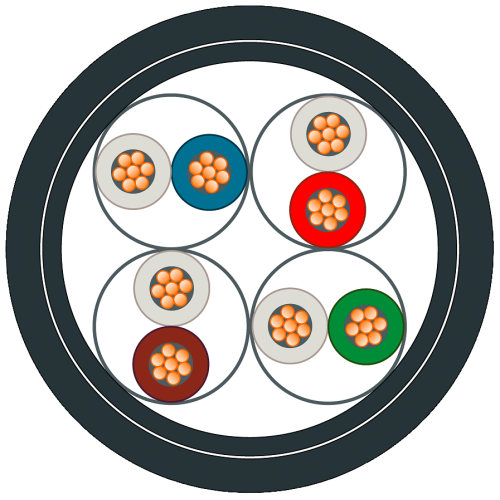

  • Configuration: 4 pairs of 2 cores each
  • Certification: Railway-certified
  • Core Type: Shielded
  • Core Count: 8 cores
  • Length: Sold by the meter, max. delivery unit 1000m
  • Minimum Order Quantity: 20 meters


Product

Manufacturer Material ID -
6XV1878-2T
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
CH
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
26121629

Technical Specification

-
Siemens
Nominal cross section conductor -
- Square millimetre
Core insulation material -
UN
Circuit integrity -
UN
Diameter conductor -
- Millimetre
AWG-size -
-
NVP value -
- Percentage
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Flame retardant -
No
Colour outer sheath -
Black
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Other
Conductor category -
Class 2 = stranded
Protective sheath -
No
Stranding -
Bundle
Low smoke (acc. EN 61034-2) -
Reaction-to-fire class according to EN 13501-6 -
None
Specification material outer sheath -
Other
Category -
7
Conductor surface -
Tinned
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
53 Millimetre
Min. permitted bending radius, moving application/free movement -
53 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
53 Millimetre
Number of cores -
8
Number of stranding elements -
4
Outer diameter approx. -
8.1 Millimetre
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-20 Degrees celsius
Sheath colour -
Black
Stranding element -
Pairs

Availability Back Order

£12.00
