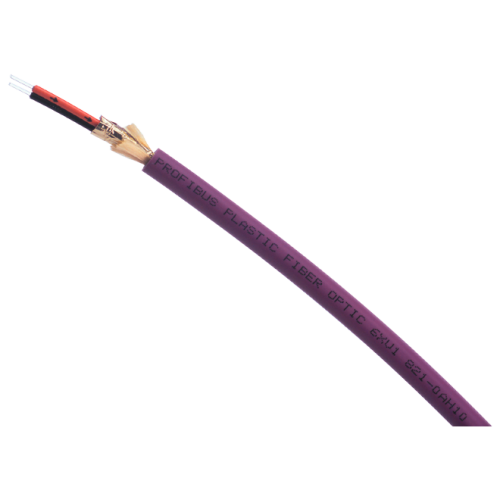

6XV18210AH10

PROFIBUS Plastic Fiber Optic (980/1000), standard cable, Sold by the meter minimum order quantity 20 m max. length 500 m

Manufacturer's No: 6XV1821-0AH10     Manufacturer: Siemens
PROFIBUS Plastic Fiber Optic (980/1000), standard cable, Sold by the meter minimum order quantity 20 m max. length 500 m

Availability Back Order

£5.00
  • PROFIBUS Plastic Fiber Optic (980/1000)
  • Standard cable
  • Sold by the meter
  • Minimum order quantity: 20 m
  • Maximum length: 500 m


Product

Manufacturer Material ID -
6XV1821-0AH10
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85447000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
20
RoHs Compliance -
Yes
UNSPSC -
26121609

Technical Specification

-
Siemens
Circuit integrity -
UN
Category -
UN
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Colour outer sheath -
Other
Material outer sheath -
Polyvinyl chloride (PVC)
Reaction-to-fire class according to EN 13501-6 -
Eca
Specification material outer sheath -
Other
Fibre type -
Multi mode 980/1000
Flame retardant -
In accordance with IEC/EN 60332-1-2
With strain relief -
Sheath material -
Polyvinyl chloride (PVC)
Type of tube -
Other
Number of fibres per tube -
1
Cable metal free -
Outer diameter approx. -
7.8 Millimetre
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath material specification -
Other
Min. permitted bending radius, stationary application/permanent installation -
150 Millimetre
Number of fibres -
2
Sheath colour -
Purple/violet

Availability Back Order

£5.00
