6XV18303FH10

PB FC buried cable;bulk stock;PE;robust

Manufacturer's No: 6XV1830-3FH10     Manufacturer: Siemens
PB FC buried cable;bulk stock;PE;robust

Availability Back Order

£3.00

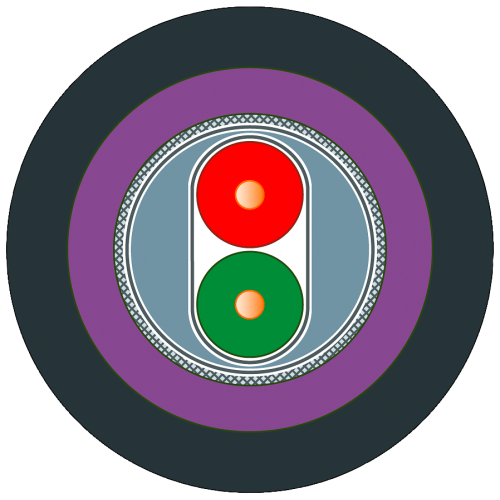

  • Cable Type: PROFIBUS FC Underground
  • Configuration: 2-core shielded
  • Maximum Delivery Length: 1000 meters
  • Minimum Order Quantity: 20 meters


Product

Manufacturer Material ID -
6XV1830-3FH10
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
20
RoHs Compliance -
Yes
UNSPSC -
26121629

Technical Specification

-
Siemens
Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
NVP value -
- Percentage
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Armouring -
Colour outer sheath -
Black
Diameter conductor -
0.65 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyvinyl chloride (PVC)
Underground installation -
Reaction-to-fire class according to EN 13501-6 -
Fca
Specification material outer sheath -
Other
Core insulation material -
Other
Flame retardant -
No
Sheath material -
Polyvinyl chloride (PVC)
Conductor category -
Class 1 = solid
Protective sheath -
No
Stranding -
Bundle
Sheath material specification -
Other
Category -
Other
Conductor Diameter -
0.65 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
81 Millimetre
Min. permitted bending radius, moving application/free movement -
81 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
81 Millimetre
Number of cores -
2
Number of stranding elements -
1
Outer diameter approx. -
10.8 Millimetre
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Reaction-to-fire according to EN 13501-6: Class -
Fca
Sheath colour -
Black
Stranding element -
Pairs
Suitable for underground installation -

Availability Back Order

£3.00
