6XV18602R

PB Hybrid Standard Cable GP, 2xCu 0.64 mm, 2xCu 1.5 mm2, sold by the meter

Manufacturer's No: 6XV1860-2R     Manufacturer: Siemens
PB Hybrid Standard Cable GP, 2xCu 0.64 mm, 2xCu 1.5 mm2, sold by the meter

Availability Back Order

£7.00
  • PROFIBUS hybrid standard cable GP

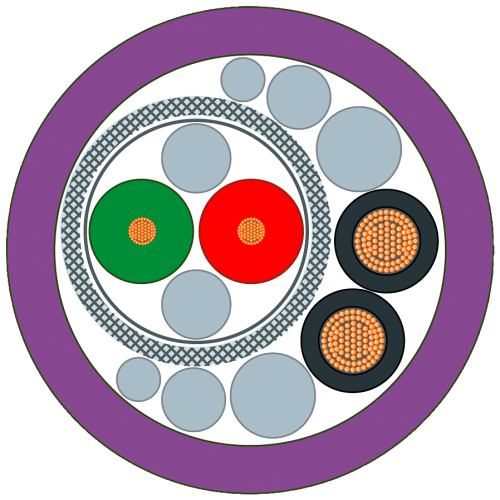

  • Cable with 2xCU (1.5 mm²) and 2xCU (0.64 mm²) shielded
  • Suitable for ET 200
  • Sold by the meter
  • Delivery unit maximum: 1000 meters
  • Minimum order quantity: 20 meters


Product

Manufacturer Material ID -
6XV1860-2R
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
20
RoHs Compliance -
Yes
UNSPSC -
26121629

Technical Specification

-
Siemens
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Data and communication cable (copper) -
Reaction-to-fire class according to EN 13501-6 -
Eca
Energy cable -
Data and communication cable -
Min. permitted bending radius, moving application with forced guidance -
125 Millimetre
Min. permitted bending radius, moving application/free movement -
125 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
125 Millimetre
Power cable -
Reaction-to-fire according to EN 13501-6: Acidity -
None
Reaction-to-fire according to EN 13501-6: Class -
Eca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles -
None
Reaction-to-fire according to EN 13501-6: Smoke production -
None

Availability Back Order

£7.00
