6XV18303GH10

PB Festoon cable GP;bulk stock;festoon suspension;PVC;robust

Manufacturer's No: 6XV1830-3GH10     Manufacturer: Siemens
PB Festoon cable GP;bulk stock;festoon suspension;PVC;robust

Availability Back Order

£8.00

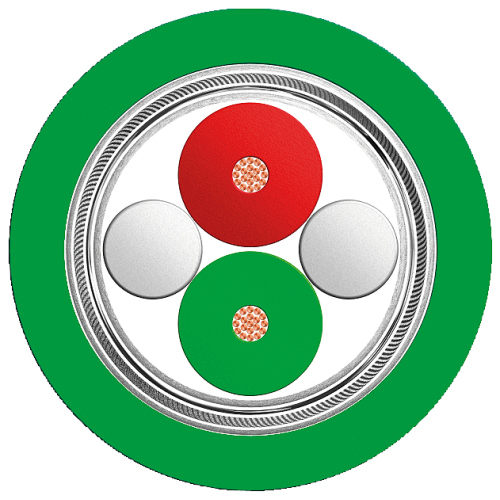

  • PROFIBUS FESTOON Cable GP for festoon suspension
  • 2-core shielded
  • Max. acceleration: 4 m/s²
  • Min. 5 million bending cycles
  • Sold by the meter
  • Delivery unit: max. 1000 m
  • Minimum order quantity: 20 m


Product

Manufacturer Material ID -
6XV1830-3GH10
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
20
UNSPSC -
26121629

Technical Specification

Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
NVP value -
- Percentage
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Min. permitted bending radius, moving application with forced guidance -
- Millimetre
Min. permitted bending radius, moving application/free movement -
- Millimetre
Min. permitted bending radius, stationary application/permanent installation -
- Millimetre
Specification core insulation -
UN
Colour outer sheath -
Other
Diameter conductor -
0.67 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyvinyl chloride (PVC)
Reaction-to-fire class according to EN 13501-6 -
Eca
Specification material outer sheath -
Other
Core insulation material -
Other
Flame retardant -
No
Sheath colour -
Other
Sheath material -
Polyvinyl chloride (PVC)
Conductor category -
Class 5 = flexible
Protective sheath -
No
Stranding -
Bundle
Sheath material specification -
Other
Category -
Other
Conductor Diameter -
0.67 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
None
Number of cores -
2
Number of stranding elements -
1
Outer diameter approx. -
8 Millimetre
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Reaction-to-fire according to EN 13501-6: Class -
Eca
Stranding element -
Pairs

Availability Back Order

£8.00
