2CDG110176R0011

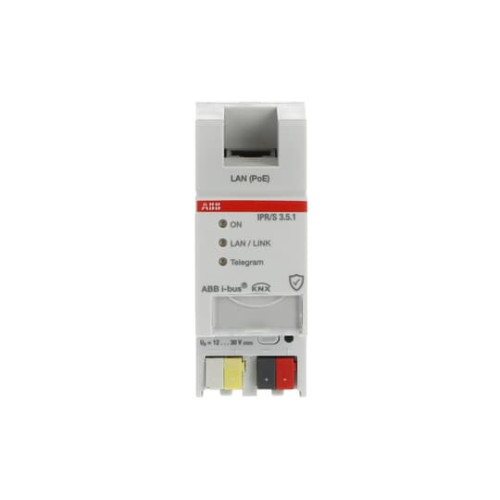

IPR/S3.5.1 IP Router Secure, MDRC

Manufacturer's No: IPR/S3.5.1     Manufacturer: ABB
IPR/S3.5.1 IP Router Secure, MDRC

Availability On Request

£604.39
  • IPR/S3.5.1 IP Router Secure
  • Connects KNX bus with Ethernet network
  • Encrypts communication on IP backbone using KNXnet/IP Secure protocol
  • Functions as fast line and area coupler
  • Supports full filter table for main groups 0-31
  • Allows programming of KNX devices via LAN using ETS
  • Features 5 Secure Tunneling Servers for client connections
  • Supports fixed or DHCP-assigned IP address
  • Power supply options: 12-30 V DC or PoE (IEEE 802.3af class 1)
  • Can switch off KNX Standard Communication (Multicast) for unicast communication with up to 10 IPR/S3.5.1 devices


Product

Manufacturer Material ID -
IPR/S3.5.1
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Bus system KNX -
Colour -
Other
Degree of protection (IP rating) -
IP20
Material qualifier -
Thermoplastic
Max. data transmission rate -
9600 Baud
Model -
Ethernet
Mounting method -
DRA (DIN-rail adapter)
Other bus systems -
None
RAL-number (similar) -
7035
Surface finish -
Matt
Width in number of modular spacings -
2
With label area -
With LED indication -
ABB

Availability On Request

£604.39
