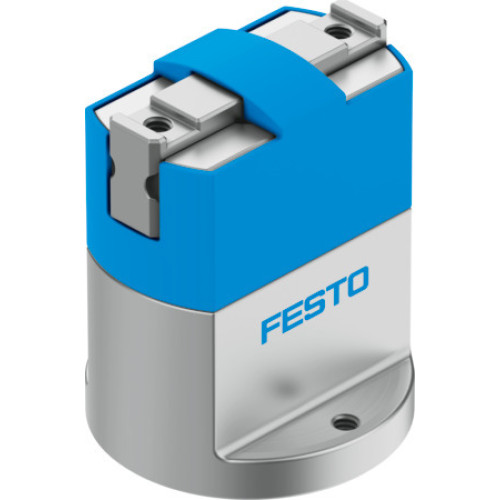

HGPM-12-EZ-G9 Parallel gripper

Manufacturer's No: HGPM-12-EZ-G9     Manufacturer: Festo
HGPM-12-EZ-G9 Parallel gripper

Availability On Request

£345.67
  • Model: HGPM-12-EZ-G9
  • Gripper Type: Parallel gripper
  • Mounting: Direct flange mounting with screws
  • Size: 12
  • Stroke per gripper jaw: 3 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Repetition Accuracy: <= 0.05 mm
  • Number of Gripper Fingers: 2
  • Drive System: Pneumatic
  • Operating Pressure: 4 BAR (Min), 8 BAR (Max)

Read more

  • Gripper Force: 35 N (Total gripping force, closing)
  • Gripper Force per Gripper Jaw: 17.5 N (Opening)
  • Gripper Function: Parallel
  • Design: Wedge-shaped drive
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: CRC 1 - Low corrosion stress
  • Ambient Temperature: 5°C (Min), 60°C (Max)
  • Product Weight: 62 g
  • Material:
    • Cover Cap: POM
    • Housing: Anodised wrought aluminium alloy
    • Gripper Jaws: High-alloy steel
  • Pneumatic Connection: M3
  • Mounting Type: Via female thread
  • Mass Moment of Inertia: 0.07939 kgcm
  • Max. Force on Gripper Jaw Fz Static: 30 N
  • Max. Torque at Gripper:
    • Mx Static: 0.5 Nm
    • My Static: 0.5 Nm
    • Mz Static: 0.5 Nm
  • Operating Frequency: 4 Hz
  • Opening Time at 0.6 MPa: 3 ms
  • Closing Time at 0.6 MPa: 8.3 ms
  • Note:
    • Lubricated operation possible
    • RoHS-compliant materials
    • LABS (PWIS) Conformity: VDMA24364-B2-L


Product

Manufacturer Material ID -
HGPM-12-EZ-G9
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
41111926

Technical Specification

Width -
- Millimetre
Depth -
- Millimetre
Weight -
- Gram
Radio protocol -
UN
Max. transmission range -
- Millimetre
Type of memory -
UN
Degree of protection (IP) -
UN
Material housing -
Plastic
Diameter -
22 Millimetre
Height -
3 Millimetre
Frequency -
13.56 Megahertz
Housing material -
Plastic
Festo

Availability On Request

£345.67
