7TCA091170R0034

RECSD B/HEAD 2W M3 LED WHT IR2

Manufacturer's No: IR2RRB3LS1X     Manufacturer: ABB
RECSD B/HEAD 2W M3 LED WHT IR2

Availability On Request

POA

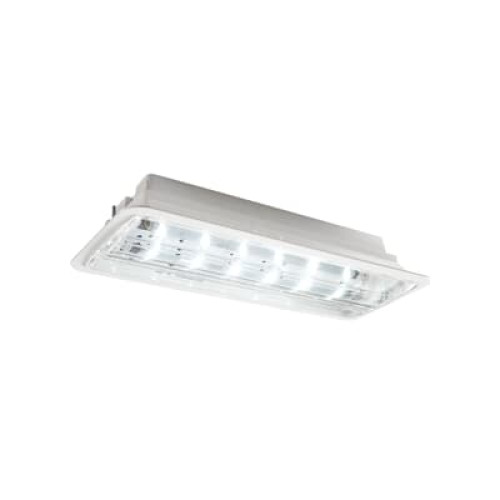

  • Model: RECSD B/HEAD 2W M3 LED WHT IR2
  • Type: Silver-Scape Recessed Emergency Luminaire
  • Infra-Red Test System: M3
  • Power Supply: 220-240V AC, 50/60Hz
  • LED: 1 LED, 2W
  • Lamp Output: 240 Lumens
  • Operating Environment Temperature: 0-30°C
  • Color: White


Product

Manufacturer Material ID -
IR2RRB3LS1X
Net Weight -
1.10kg

Additional Product Information

Commodity Code -
9405608000
Country of Origin -
HU
UNSPSC -
39122330

Technical Specification

Cover material -
Without cover
Lamp included -
Battery chemistry -
NiCd
Colour temperature -
4000 Kelvin
Degree of protection (IP rating) -
IP20
Function -
Escape route lighting/signage
Height/depth -
70 Millimetre
Housing colour -
White
Housing material -
Plastic
Length -
410 Millimetre
Light distribution -
Diffuser
Light source included -
Light source type -
LED non-replaceable
Luminous flux in standby mode -
241 Lumen
Maximum system power -
3.9 Watt
Monitoring equipment -
Automatic self test
Mounting method -
Built-in
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lighting heads -
1
Power factor -
0.48
Power supply system -
Peripheral (individual battery)
Protection class -
I
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Type of cabling -
Ending
Type of indicator -
Single/double-sided
Viewing distance -
27 Metre
Voltage type -
AC
Width -
165 Millimetre
With remote switch connection -
ABB

Availability On Request

POA
