50145946

Typ. operating range limit Sn: 1.5 mm; Operating range Sa: 0 ... 1.2 mm; Supply voltage: 10 ... 30 V, DC; Digital switching output

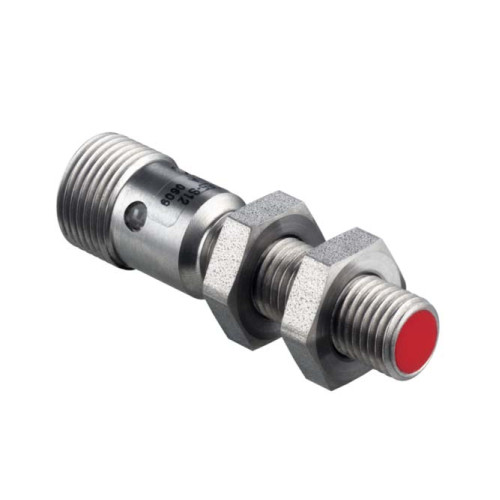

Manufacturer's No: IS 208MM/2NO-1E5-S12     Manufacturer: Leuze
Typ. operating range limit Sn: 1.5 mm; Operating range Sa: 0 ... 1.2 mm; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, NPN, NO (normally open

Availability On Request

£49.00
  • Typ. operating range limit Sn: 1.5 mm
  • Operating range Sa: 0
  • 1.2 mm
  • Supply voltage: 10
  • 30 V DC
  • Digital switching outputs: 1
  • Switching output 1: Transistor, NPN, normally open (NO)
  • Switching frequency: 5,000 Hz
  • Connection: M12 4-pin connector
  • Design: Cylindrical housing

Read more

  • Thread size: M8
  • Dimensions: 12 mm x 45 mm
  • Type of installation: Embedded
  • Housing material: Stainless steel
  • Certifications: c UL US

Accessories



Product

Manufacturer Material ID -
IS 208MM/2NO-1E5-S12
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
LK
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Coating housing -
Other
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Metal
Interface type -
None
Length of sensor -
45 Millimetre
Max. output current at protected output -
0 Milliampere
Mechanical mounting condition for sensor -
Concise
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Performance level acc. to EN ISO 13849-1 -
None
Rated control supply voltage at DC -
10 Volt
SIL according to IEC 61508 -
None
Supply voltage -
10 Volt
Switching distance -
1.2 Millimetre
Switching frequency -
5000 Hertz
Type of actuation -
Other
Type of electric connection -
Connector M12
Type of interface for safety communication -
None
Type of switch function -
Normally open contact
Type of switching output -
NPN
Voltage type -
DC
Leuze

Availability On Request

£49.00
