50151293

Typ. operating range limit Sn: 22 mm; Operating range Sa: 0 ... 17.8 mm; Supply voltage: 10 ... 36 V, DC; Digital switching output

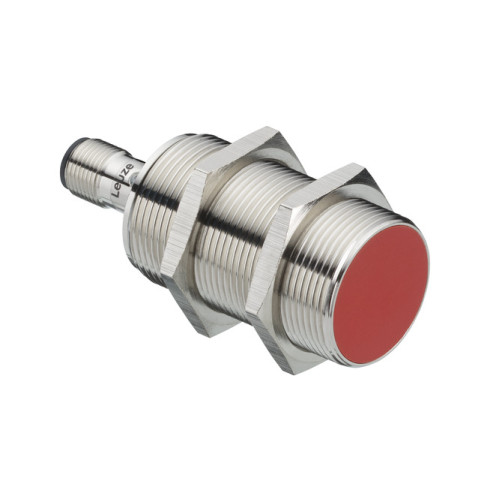

Manufacturer's No: IS230MM.2/4NC-22E-S12     Manufacturer: Leuze
Typ. operating range limit Sn: 22 mm; Operating range Sa: 0 ... 17.8 mm; Supply voltage: 10 ... 36 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, PNP, NC (normally clos

Availability On Request

£100.00
  • Typical Operating Range Limit (Sn): 22 mm
  • Operating Range (Sa): 0 ... 17.8 mm
  • Supply Voltage: 10 ... 36 V, DC
  • Digital Switching Outputs: 1 Piece(s)
  • Switching Output 1: Transistor, PNP, NC (normally closed)
  • Switching Frequency: 100 Hz
  • Connection: Connector, M12, 4-pin
  • Design, Housing: Cylindrical
  • Dimensions: 30 mm x 75 mm
  • Thread Size: M30

Read more

  • Type of Installation: Embedded
  • Housing Material: Metal
  • Certifications: c UL US


Product

Manufacturer Material ID -
IS230MM.2/4NC-22E-S12
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
LT
UNSPSC -
32121702
Leuze

Availability On Request

£100.00
