50153128

Typ. operating range limit Sn: 8 mm; Operating range Sa: 0 ... 6.4 mm; Supply voltage: 10 ... 30 V, DC; Digital switching outputs:

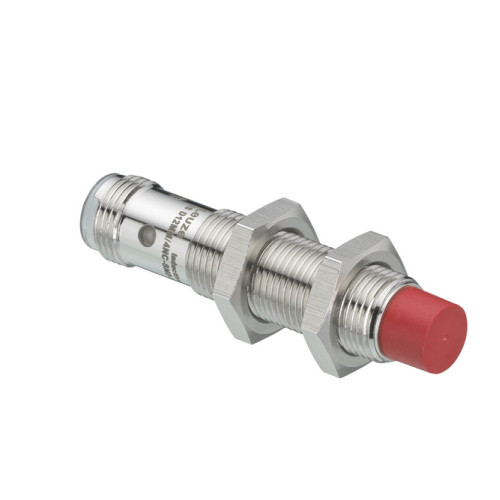

Manufacturer's No: ISD12MM/4NC-8N0-M12     Manufacturer: Leuze
Typ. operating range limit Sn: 8 mm; Operating range Sa: 0 ... 6.4 mm; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, PNP, NC (normally closed

Availability On Request

£24.00
  • Typical Operating Range Limit (Sn): 8 mm
  • Operating Range (Sa): 0 ... 6.4 mm
  • Supply Voltage: 10 ... 30 V, DC
  • Digital Switching Outputs: 1 Piece(s)
  • Switching Output 1: Transistor, PNP, NC (normally closed)
  • Switching Frequency: 800 Hz
  • Connection: Connector, M12, 4-pin
  • Design, Housing: Cylindrical
  • Dimensions: 12 mm x 56.5 mm
  • Thread Size: M12

Read more

  • Type of Installation: Non-embedded
  • Housing Material: Metal
  • Certifications: c UL US


Product

Manufacturer Material ID -
ISD12MM/4NC-8N0-M12
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CN
UNSPSC -
32121702
Leuze

Availability On Request

£24.00
