Typ. operating range limit Sn: 40 mm; Operating range Sa: 0 ... 32.4 mm; Special version: Antivalent; Supply voltage: 10 ... 30 V,

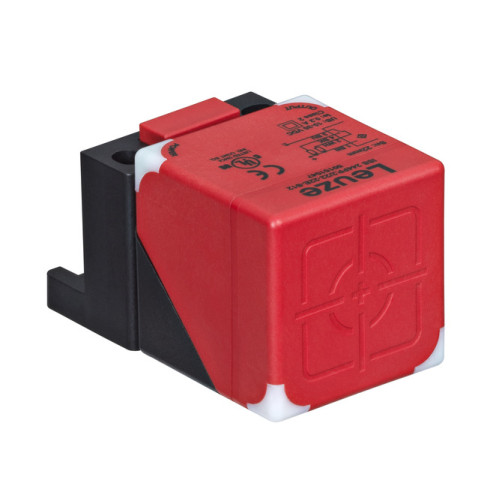

Manufacturer's No: ISS244PP.2/22-40N-S12     Manufacturer: Leuze
Typ. operating range limit Sn: 40 mm; Operating range Sa: 0 ... 32.4 mm; Special version: Antivalent; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 Piece(s); Switching output 1: Trans

Availability On Request

£84.00
  • Typical Operating Range Limit (Sn): 40 mm
  • Operating Range (Sa): 0 ... 32.4 mm
  • Special Version: Antivalent
  • Supply Voltage: 10 ... 30 V, DC
  • Digital Switching Outputs: 2 Pieces

  • Switching Output 1: Transistor, NPN, NO Contact – Antivalent

  • Switching Output 2: Transistor, NPN, NC Contact – Antivalent

  • Switching Frequency: 100 Hz
  • Connection: Connector, M12, 4-pin
  • Design, Housing: Cubic

Read more

  • Dimensions: 40 mm x 40 mm x 67 mm
  • Type of Installation: Non-embedded
  • Housing Material: Plastic
  • Certifications: c UL US


Product

Manufacturer Material ID -
ISS244PP.2/22-40N-S12
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
LT
UNSPSC -
32121702
Leuze

Availability On Request

£84.00
