ITMA0001

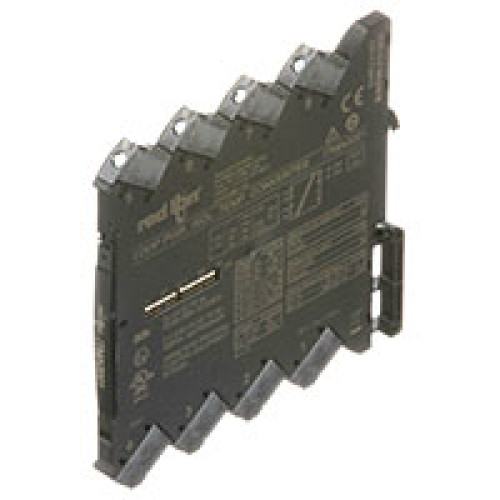

Isolated Loop Powered Temperature Converter

Manufacturer's No: ITMA0001     Manufacturer: HMS
Isolated Loop Powered Temperature Converter

Availability On Request

£269.00
  • Measures standard RTD or TC J and K temperature sensors
  • Provides isolated passive analog current output signal
  • Excellent accuracy better than 0.05% of span
  • Slimline housing of 6 mm
  • Excellent EMC performance with 50/60 Hz noise suppression
  • Selectable response time: < 30 ms or 300 ms
  • Pre-calibrated temperature ranges selectable via DIP-switches
  • High two-port isolation for surge suppression and protection from transients and noise
  • Flexibly loop powered by 5.5 to 35 VDC via connectors
  • Fast < 30 ms response time with simultaneous sensor error detection

Read more

  • Selectable 300 ms response time for signal dampening


Product

Manufacturer Material ID -
ITMA0001
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
8538907080
Country of Origin -
DK
Export Control Regulations -
EAR99
UNSPSC -
32151705
